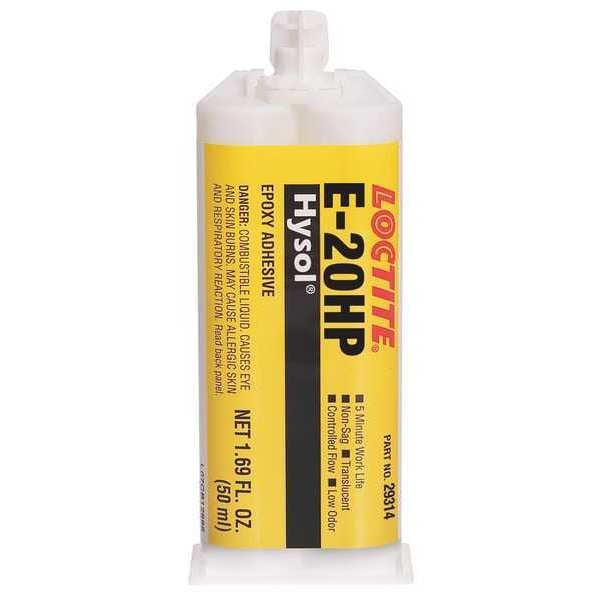

Epoxy Adhesive, E-20HP Series, Tan, Syringe, 2:01 Mix Ratio, 2 hr Functional Cure
| Item | Epoxy Adhesive |
|---|---|
| Type | High Peel, High Strength, Toughened, High Shear |
| Color | Tan |
| For Use On | Ceramic, Glass, Masonry, Metal, Plastic |
| Container Type | Syringe |
| Functional Cure | 2 hr |
| Full Cure | 24 hr |
| Mixing Ratio | 2:01 |
| Shear Strength | 3,270 psi |
| Temp. Range | -65 to 250 deg F |
| Working Time | 20 min |
| Series | E-20HP |
| Shear Strength (PSI) | 3,270 |
| Epoxy Color | Tan |
| Epoxy Max. Temp | 250 to 299 deg F |
| Temp. Range (F) | -65 to 250 |
| Size | 1.69 fl oz |
| Work Life | 20 min |
| Epoxy Container | Dual-Cartridge |
| Structural Adhesive Type | Epoxy Adhesive |
| Standards | ASTM C881, ASTM C882-99, ISO 13445, ISO 4587, ISO 527-2, ISO 868 |
| Features | High Peel Resistance, High Shear Strength, Industrial Grade, Medium Viscosity |
| Application Method | Two-Part Dispenser |
| Includes | Resin and Hardener |
| Resin Type | Epoxy |
| Hardener Color | Yellow |
| Alternate Product Name | Hysol E-20HP |
| Non-Sagging | No |
| VOC Content Weight Percentage | 0% |
| Hardness at Full Cure | 80 Shore D |
| Full Cure Time | 24 hr |
| Maximum Viscosity | 30,000 cps |
| Tensile Strength | 5,700 psi |
| Maximum Performance Temperature | 250 deg F |
| Low Odor | No |
| Cured Color | Off-White |
| Water Resistance | Not Water-Resistant |
| Resin Color | Yellow |
| Compatible Applicator | 720,228, 267,452, 476,898 |
| Included Components | Hardener, Resin |
| Total Volume | 50 mL |
| Marine Grade | No |
| Minimum Performance Temperature | -65 deg F |
| Materials Bonded | Aluminum, Concrete, Metal, Nylon, Plastic, Polycarbonate, Stainless Steel, Wood |
| VOC Content Weight | Less than 10 g/L |
| Interior/Exterior | Interior Only |
| Compatible Applicator (Grainger Part Number) | 3NVL4 |
| Cure Method | Ambient |
| Minimum Viscosity | 30,000 cps |
| Primary Applications | General Purpose |
| Container Type - Adhesives | Dual-Cartridge |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
