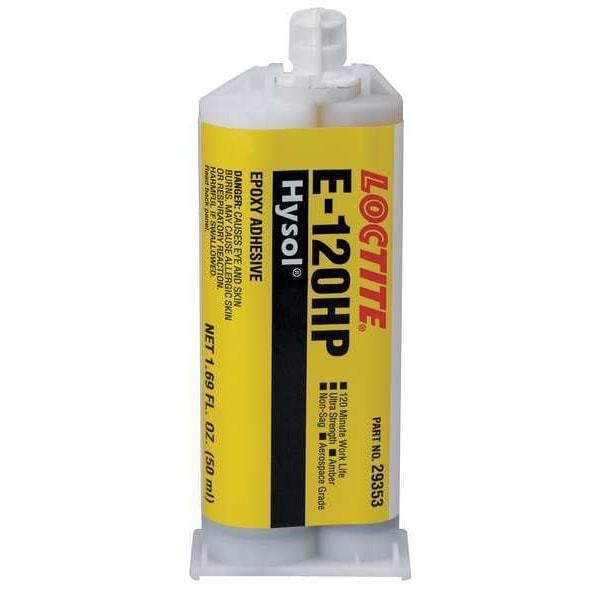

Epoxy Adhesive, E120-HP Series, Amber, Dual-Cartridge, 2:01 Mix Ratio, 3 hr Functional Cure
| Item | Epoxy Adhesive |
|---|---|
| Type | High Temp., Ultra Strength, Non-Sag |
| Color | Amber |
| For Use On | Ceramic, Glass, Masonry, Metal, Plastic |
| Container Type | Dual-Cartridge |
| Functional Cure | 3 hr |
| Full Cure | 24 hr |
| Mixing Ratio | 2:01 |
| Shear Strength | 4,300 psi |
| Temp. Range | -65 to 300 deg F |
| Working Time | 2 hr |
| Series | E120-HP |
| Size | 1.69 fl oz |
| Temp. Range (F) | -65 to 300 |
| Epoxy Color | Amber |
| Epoxy Container | Dual-Cartridge |
| Shear Strength (PSI) | 4,300 |
| Epoxy Max. Temp | 300 Degrees F and Above |
| Work Life | 120 min |
| Structural Adhesive Type | Epoxy Adhesive |
| Features | Bonds Dissimilar Materials, Mechanical and Electrical Properties, Resistant to Peel and Impact Forces, Extended Work Life, Thermal Shock Resistant, Suitable for Low Stress, General Industrial Applications Which Require High Impact and High Peel Strength, Withstands Exposure to A Wide Variety of Solvents and Chemicals |
| Standards | ASTM E1640 |
| Resin Type | Epoxy |
| Application Method | Two-Part Dispenser |
| Includes | Resin and Hardener |
| VOC Content Weight Percentage | Less Than 1% |
| Non-Sagging | Yes |
| Included Components | Hardener, Resin |
| Primary Applications | General Purpose |
| Water Resistance | Not Water-Resistant |
| Hardener Color | Amber |
| Tensile Strength | 5,900 psi |
| Interior/Exterior | Interior Only |
| Minimum Viscosity | 30,000 cps |
| Compatible Applicator | 267,452, 720,228, 476,898 |
| Marine Grade | No |
| Cured Color | Amber |
| Maximum Performance Temperature | 300 deg F |
| Materials Bonded | Aluminum, Ceramic, Metal, Plastic, Steel |
| Full Cure Time | 24 hr |
| Resin Color | Off-White |
| Compatible Applicator (Grainger Part Number) | 3NVL4 |
| Total Volume | 50 mL |
| VOC Content Weight | Less than 10 g/L |
| Alternate Product Name | EA E-120HP |
| Maximum Viscosity | 30,000 cps |
| Hardness at Full Cure | 76 to 90 Shore D |
| Minimum Performance Temperature | -65 deg F |
| Low Odor | No |
| Cure Method | Ambient |
| Container Type - Adhesives | Dual-Cartridge |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
