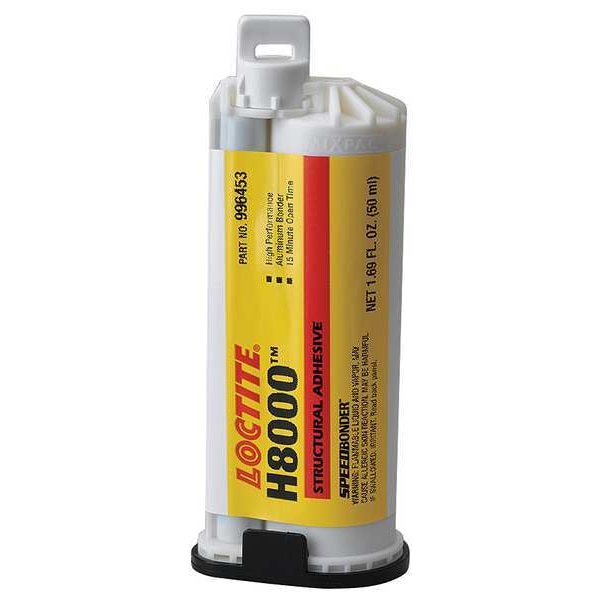

Glue Stick, H8000 Series, Green, Dual-Cartridge, 10:01 Mix Ratio, 30 min Functional Cure
| Item | Glue Stick |
|---|---|
| Type | Multi-Purpose |
| Application | Bonding |
| Color | Green |
| For Use On | Applicator, Mixing Tip |
| Container Type | Dual-Cartridge |
| Functional Cure | 30 min |
| Full Cure | 3 day |
| Mixing Ratio | 10:01 |
| Shear Strength | 2,800 psi |
| Temp. Range | -65 to 180 deg F |
| Working Time | 30 min |
| Series | H8000 |
| Structural Adhesive Type | Acrylic Adhesive |
| Epoxy Color | Green |
| Shear Strength (PSI) | 2,800 |
| Epoxy Container | Dual-Cartridge |
| Temp. Range (F) | -65 to 180 |
| Epoxy Max. Temp | 199 Degrees F and Below |
| Size | 1.69 fl oz |
| Work Life | 30 min |
| Standards | RoHS |
| For Use With | Applicator, Mixing Tip |
| Features | High Bond Strength, Environmental Resistant, Fast Fixture Time, Little or No Surface Preparation, Rapid Room Temperature Cure, High Impact Strength, High Peel Strength |
| Resin Type | Acrylic |
| Application Method | Two-Part Dispenser |
| Includes | Resin and Hardener |
| VOC Content | 12.8g/L |
| Total Volume | 50 mL |
| Maximum Performance Temperature | 180 deg F |
| Tensile Strength | 2,215 psi |
| Alternate Product Name | AA H8000 |
| Interior/Exterior | Interior Only |
| Compatible Mixer Tip | 1034575 |
| Compatible Plunger | 10:1 Plunger |
| Resin Color | Yellow |
| Cure Method | Ambient |
| VOC Content Weight Percentage | 1.37% |
| Materials Bonded | ABS Plastic, Aluminum, Composite, Metal, Plastic, Stainless Steel, Steel |
| VOC Content Weight | 12.87 g/L |
| Cured Color | Green |
| Minimum Viscosity | 20,000 cps |
| Full Cure Time | 3 days |
| Minimum Performance Temperature | -65 deg F |
| Hardness at Full Cure | 70 Shore D |
| Maximum Viscosity | 250,000 cps |
| Primary Applications | General Purpose |
| Marine Grade | No |
| Hardener Color | Blue |
| Peel Strength | 45 lb/in |
| Compatible Applicator (Grainger Part Number) | 806TC1 |
| Compatible Applicator | 1,034,026 |
| Water Resistance | Not Water-Resistant |
| Included Components | Hardener, Resin |
| Non-Sagging | Yes |
| Low Odor | No |
| Material | Methacrylate |
| Container Type - Adhesives | Dual-Cartridge |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
