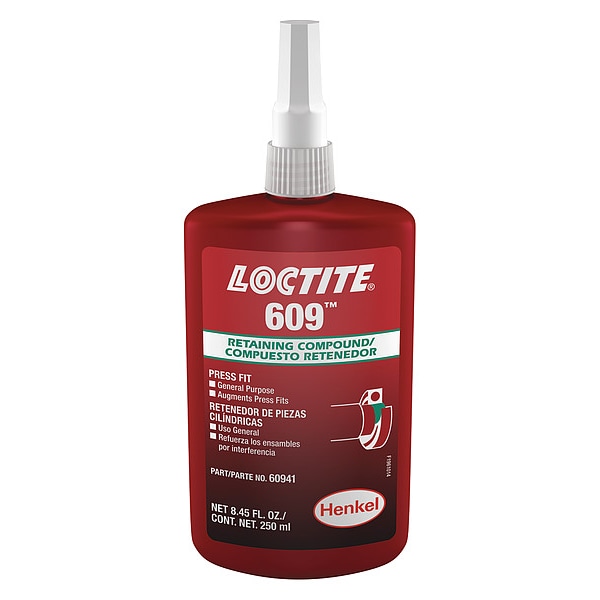

Retaining Compound 609, 8.45 fl oz, 250 ml, Bottle, Green
| Item | Retaining Compound |
|---|---|
| Color | Green |
| Compatible Materials | Steel |
| Application | Press Fit, Press Fit or Slip Fit/Housing Mount, Shaft Mount |
| Container Size | 8.5 fl oz |
| Operating Temperature Range | -65 to 300 deg F |
| Maximum Gap Fill Size | 0.006 in |
| Shear Strength | 15 N/mm² |
| Size | 250 mL |
| Compound Type | Fast Cure, General Purpose Low Viscosity |
| Type | General Purpose |
| Optimal Usage Temperature | -65 Degrees to 300 Degrees F |
| Full Cure | 24 hr |
| Container Type - Adhesives | Bottle |
| Physical Form | Liquid |
| Standards | ASTM D-5363, CFIA Listed, MIL-R-460B |
| Characteristics | Green |
| Series | 609 |
| Max. Temp. (F) | 300 |
| Primer | T |
| Gap Fill Size | 0.006 in |
| Flash Point | 200 deg F |
| Specific Gravity | 1.1 kg/m3 |
| Minimum Viscosity | 120 cps |
| Retaining Compound Strength | High |
| Working Time | 10 min |
| Storage Requirements | 8 to 21 deg C |
| Minimum Operating Temperature | -65 deg F |
| Clean Up Method | Solvent, Wire Brush |
| For Material Type | Steel |
| Cure Type | Anaerobic Cure |
| VOC Content | 2.46 g/L |
| Compatible Primer Series | Excel 612 |
| Container Type | Bottle |
| Product Form | Liquid |
| Maximum Operating Temperature | 300 deg F |
| Primer Required | Yes |
| Chemical Base | Methacrylate Ester |
| Retaining Compounds Properties | For Close Fitting Parts |
| Non-Toxic | No |
| Full Cure Time | 1 day |
| Maximum Viscosity | 120 cps |
| Gap Fill Size - Retaining Compounds | 0.006 in |
| Shear Strength (PSI) | 2,300 |
| Filling Gap Size | Up to 0.006 in |
| Container Size - Adhesives | 8.45 fl oz |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
