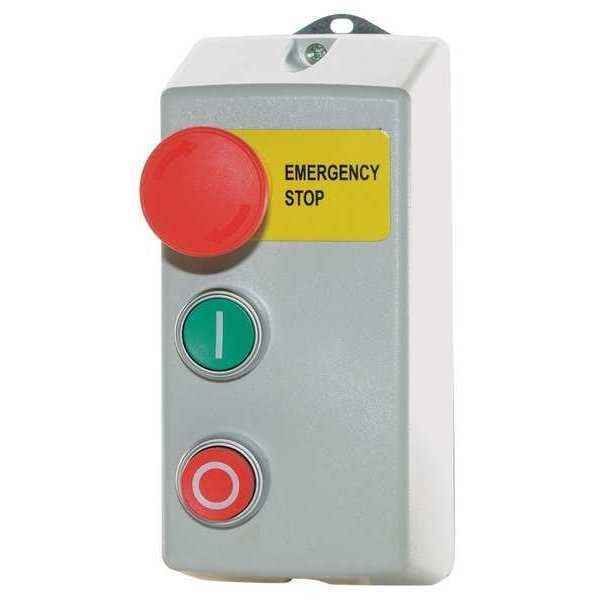

Estación de control, 6.50 pulgadas de diámetro x 7.25 pulgadas de altura.
| Item | Control Station |
|---|---|
| Contact Form | 4NO |
| Legend | Stop |
| Type of Operator | Flush Button/Flush Button |
| Number of Pilot Lights | 0 |
| Number of Operators | 3 |
| NEMA Rating | 4x |
| Series | Not Applicable |
| Hub Style | Feed-Thru |
| Size | 30 mm |
| Contact Rating | 10A @ 600V AC |
| Standards | CE, UL Listed |
| Head Material | Plastic |
| Action | Momentary, Maintained |
| Mechanical Interlock | No |
| Hub | 1/2 in to 3/4 in NPT |
| Mounting | Wall |
| IP Rating | IP65 |
| Height | 7-1/4 in |
| Width | 3-1/2 in |
| Enclosure Material | Plastic |
| Depth | 6-1/2 in |
| Enclosure Color | Gray |
| Operator Color | Red, Green |
| Number of Speeds | Not Applicable |
| Mounting Style | Surface |
| Panel Cutout Diameter | 30 mm |
| Pilot Light Color | Not Applicable |
| Maintained Action Release | Twist |
| Operator Configuration | Push Buttons, Emergency Stop |
| Overall Height | 7-1/4 in |
| Hazardous Location Specification | Not Rated |
| Hub Size - Maximum | 7/8 in |
| Overall Width | 3-1/2 in |
| Includes Mechanical Interlock | No Mechanical Interlock Included. |
| Selector Switch Number of Positions | Not Applicable |
| Product Type | Control Station |
| AC Contact Rating | 10 A @ 600 V |
| DC Contact Rating | Not Rated |
| Overall Depth | 6-1/2 in |
| Mounting Orientation | Vertical, Horizontal |
| NEMA Enclosure Rating | 4X |
| Package Quantity | 1 |
