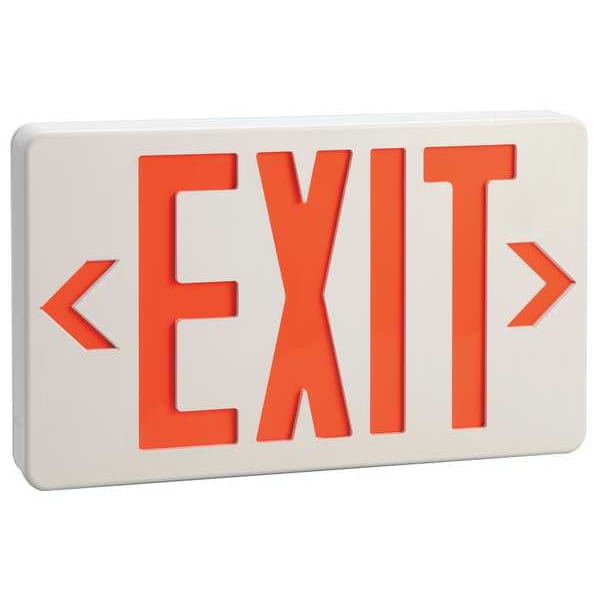

LUMAPRO Thermoplastic LED Exit Sign with Battery Backup, 6CGL5
| Item | Exit Sign |
|---|---|
| Width | 11-13/16 in |
| Height | 7-1/4 in |
| Voltage | 120/277 V AC |
| Housing Material | Plastic |
| Number of Faces | 1 or 2 |
| Mounting | Universal |
| Lighting Technology | LED |
| Emergency Illumination Time | 90 min |
| Directional Indicators | Universal Field Selectable Chevrons |
| Housing Color | White |
| Battery Chemistry | Nickel Cadmium |
| Letter Color | Red |
| Housing Color - Emergency Lighting and Exit Signs | White |
| Number of Lamp Heads | 0 |
| Standards | NFPA Life Safety Code 101, UL to UL 924 Standard |
| Voltage - Emergency Lighting and Exit Signs | 120/277 |
| Emergency Back Up Battery | Yes |
| Fixture Wattage | 0.4 W |
| Background Color | White |
| Lamp Head Light Source - Emergency Lighting and Exit Signs | No Heads |
| Bulb Technology | LED |
| Depth | 1-13/16 in |
| Lamp Type | LED |
| Housing Material - Emergency Lighting and Exit Signs | Plastic |
| Directional Indicators - Emergency Lighting and Exit Signs | Universal Field Selectable Chevrons |
| Letter Size | 3/4 in Stroke x 6 in High |
| Item - Emergency Lighting and Exit Signs | Exit Sign |
| Warranty | 2ACC5 |
| Battery Type | Nickel Cadmium |
| Includes | Push Button |
| Housing Finish | Matte |
| Maximum Operating Temperature | 104 deg F |
| Text Stroke Width | 3/4 in |
| Remote Capable | No |
| Recommended Mounting Height | 10 ft |
| Emergency Wattage | 0.3 W |
| IP Rating | Not Rated |
| Emergency Battery Backup | Yes |
| Text Height | 6 in |
| CA Title 20 Compliant | Yes |
| Text Color | Red |
| Minimum Operating Temperature | 50 deg F |
| Battery Voltage | 2.4 V DC |
| Remote Capacity | Not Applicable |
| Overall Width | 11-7/8 in |
| NEMA Rating | Not Rated |
| Lamp Wattage | 2 W |
| Battery Recharge Time | 24 hr |
| Self Diagnostics | No |
| Overall Depth | 1-7/8 in |
| Environmental Rating | Damp Location Rated |
| Text Size | 3/4 in Stroke x 6 in High |
| Overall Height | 7-1/4 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
