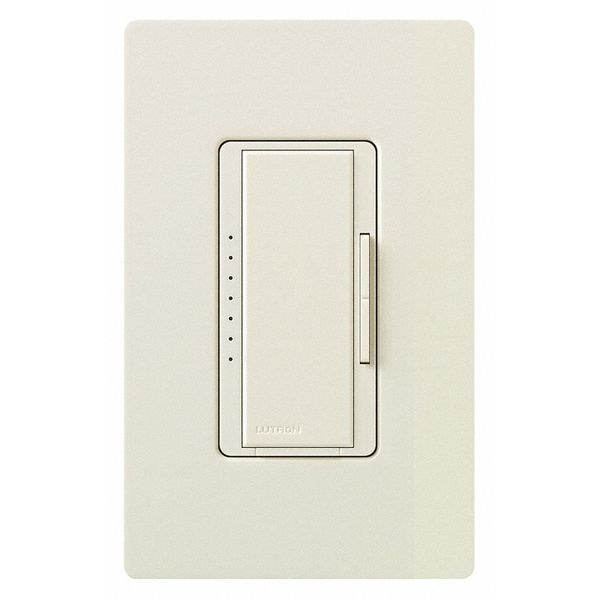

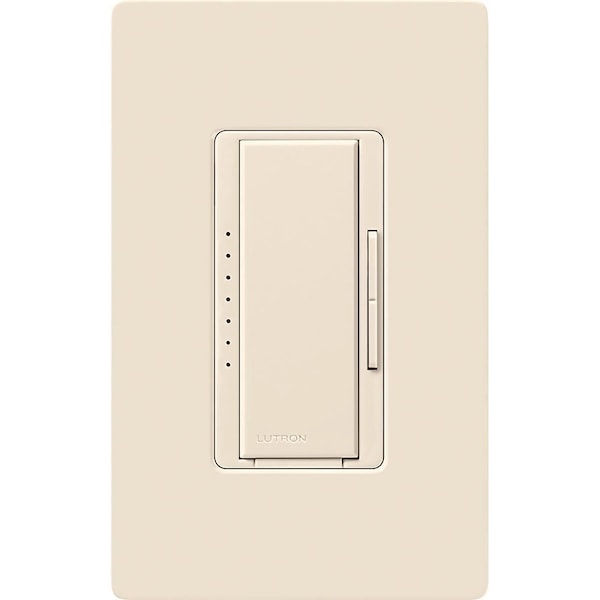

Dimmer, Maestro, CFL/LED, Light Almond
| Includes | Wire Nuts |
|---|---|
| Lighting Technology | Fluorescent, Halogen, Incandescent, LED |
| Number of Gangs | 1 |
| Item | Lighting Dimmer |
| Standards | NOM, UL 1472/CSA C22.2 184.4 |
| Color | Light Almond |
| Switch Type | 1-Pole, 3-Way, Multilocation |
| Switch Style | Push Button On/Off, Rocker Dimming |
| Number of Buttons | 3 |
| Load Rating @ 120V AC | 150W (LED), 600W (Halogen, Incandescent) |
| Overall Height | 4.69 in |
| Rated Frequency | 60 Hz |
| Load Rating @ 277V AC | Not Applicable |
| Dimming Method | Line Voltage |
| Compatible with Series | Claro |
| Neutral Required | No |
| Minimum Operating Temperature | 32 deg F |
| Includes Wall Plate | Wall Plate Not Included |
| Series | Maestro CL |
| Overall Width | 2.94 in |
| Nightlight | Yes |
| Overall Depth | 1.46 in |
| Ballast Type | Compact Fluorescent Ballast, Hi-lume LED Driver |
| Dimming Type | Full Continuous Dimming |
| Maximum Operating Temperature | 104 deg F |
| Maximum Wattage | 150W for Dimmable CFL/LED bulbs; 600W for Incandescents/Halogens |
| Coordinating Wallplates | Single Gang Wallplate CW-1-XX ; SC-1-XX 2-Gang Wallplate CW-2-XX ; SC-2-XX |
| Application Type | Single-Pole, 3-Way, or Multi-Location |
| Bulb Compatibility | Dimmable CFLs; Dimmable LEDs; Incandescents; Halogens |
| Illuminated | Yes |
| Package Quantity | 1 |
