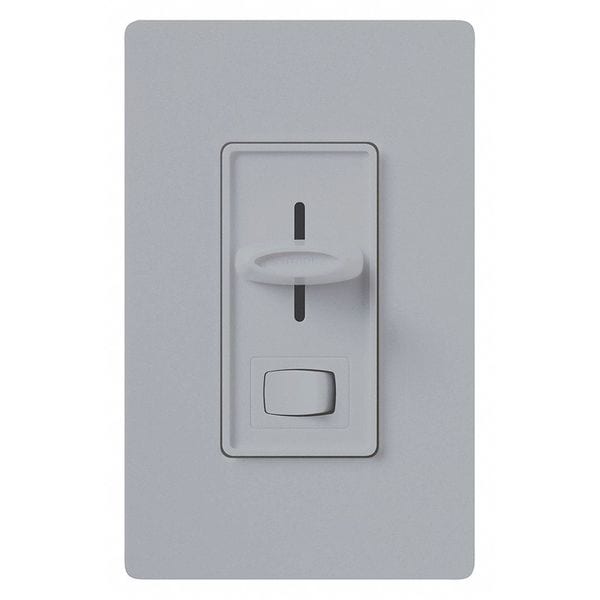

Dimmers, Skylark, CFL/LED, Gray
| Lighting Technology | Halogen, Incandescent |
|---|---|
| Item | Lighting Dimmer |
| Color | Gray |
| Switch Type | 1-Pole, 3-Way |
| Standards | UL 1472/CSA C22.2 184.1, UL Listed |
| Switch Style | Rocker On/Off, Slide Dimming |
| Wiring Method | Side |
| Neutral Required | No |
| Load Rating @ 277V AC | Not Applicable |
| Dimming Method | Line Voltage |
| Wiring Connection Type | Screw Terminals |
| Overall Height | 4.6 in |
| Series | Skylark |
| Rated Frequency | 60 Hz |
| Load Rating @ 120V AC | 150W (CFL, LED), 600W (Halogen, Incandescent) |
| Minimum Operating Temperature | 32 deg F |
| Ballast Type | LED |
| Includes Wall Plate | Wall Plate Not Included |
| Maximum Operating Temperature | 104 deg F |
| Overall Depth | 1.61 in |
| Dimming Type | Full Continuous Dimming |
| Overall Width | 2.94 in |
| Application Type | Single-Pole or 3-Way |
| Bulb Compatibility | Dimmable CFLs; Dimmable LEDs; Incandescents; Halogens |
| Coordinating Wallplates | Single Gang Wallplate CW-1-XX ; 2-Gang Wallplate CW-2-XX |
| Maximum Wattage | 150W for Dimmable CFL/LED bulbs; 600W for Incandescents/Halogens |
| Package Quantity | 1 |
