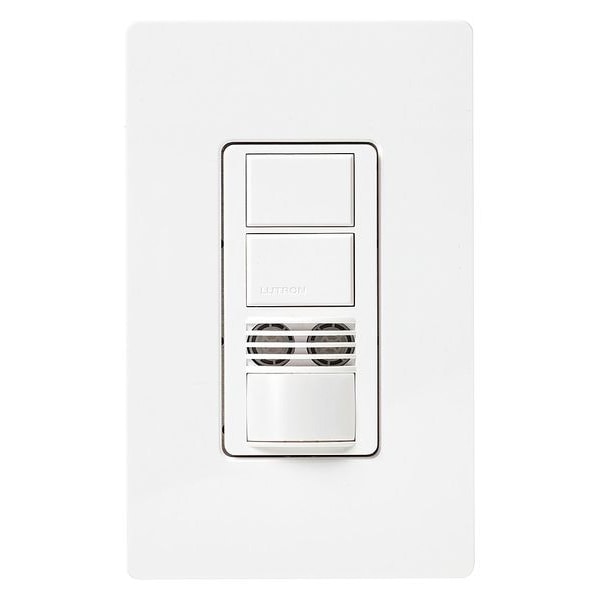

Sensor de tecnología dual para áreas de hasta 900 pies cuadrados, color blanco.
| Item - Motion Sensing and Dimming | Occupancy Sensor |
|---|---|
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Sensing Technology | Passive Infrared /Ultrasonic |
| Installation Location - Motion Sensor | Wall Switch Box |
| Coverage at Suggested Mounting Height | 900 sq ft |
| Operating Voltage - Motion Sensing and Dimming | 120 to 277V AC |
| Color - Motion Sensing and Dimming | White |
| Time Delay Adjustment Method - Motion Sensor | Adjustable |
| Time Delay - Motion Sensor | 1 min, 15 min, 30 min, 5 min |
| Sensor Type | Passive Infrared/Ultrasonic |
| Standards | NOM, Title 20/24 Compliant, ULR Listed |
| Suggested Mounting Height - Motion Sensor | 4 ft |
| Coverage Angle - Motion Sensor | 180 deg |
| Voltage | 120 to 277VAC |
| Installation Type | Wall |
| Timer Range | 1, 5, 15, 30 min. |
| Viewing Angle | 180 deg |
| Description/Special Features | Dual-Circuit, Single Pole/3-Way, XCT Technology for Major, Minor, Fine and Very Fine Motion Detection, Sensitivity Adjustment, Switches All Lighting Loads, Decora Style |
| Color | White |
| Lighting Technology | Fluorescent, Halogen, Incandescent, LED |
| Max. Capacity @ 120VAC | 4.4A (Fan Motor), 6A (CFL, ELV, Fluorescent, Halogen, Incandescent, LED, MLV) |
| Coverage | 900 sq ft |
| Max. Capacity @ 277VAC | 6A (CFL, ELV, Fluorescent, Halogen, Incandescent, LED, MLV) |
| For Use With | Incandescent, Halogen, MLV, ELV, CFL, LED, Magnetic Fluorescent and Electronic Fluorescent |
| Time Delay | Adjustable |
| Item | Occupancy Sensor |
| Includes | Yellow Jumper Wire |
| Communication Method | Hard Wired |
| Number of Gangs | 1 |
| Wall Plate | Not Included |
| Dimming Method | No Dimming |
| Load Rating @ 277V AC | 6A (Lighting) |
| Maximum Mounting Height | 4 ft |
| Sensor Operation | Occupancy, Vacancy |
| Fan Rated | Yes |
| Coverage Type | Small Motion |
| Maximum Operating Temperature | 104 deg F |
| Includes Dimming Switch | Dimming Switch Not Included |
| Overall Width | 2.94 in |
| Minimum Coverage Area | 400 sq ft |
| Rated Frequency | 50/60 Hz |
| Includes Wall Plate | Wall Plate Not Included |
| Installation Location | Wall |
| Maximum Coverage Area | 900 sq ft |
| Compatible with Series | Universal |
| Neutral Required | Yes |
| Number of Buttons | 2 |
| Series | Maestro |
| Overall Height | 4.69 in |
| Nightlight | No |
| Minimum Mounting Height | Not Applicable |
| Horsepower Rating | 3/16 hp |
| Manufacturer Warranty | 5 yr |
| Dimming Type | No Dimming |
| Minimum Time Delay | 1 min |
| Coverage Angle | 180 deg |
| Minimum Operating Temperature | 32 deg F |
| Load Rating @ 120V AC | 4.4A (Fan), 6A (Lighting) |
| Includes Motion Sensor | Yes |
| Maximum Time Delay | 30 min |
| Overall Depth | 0.31 in |
| Package Quantity | 1 |
