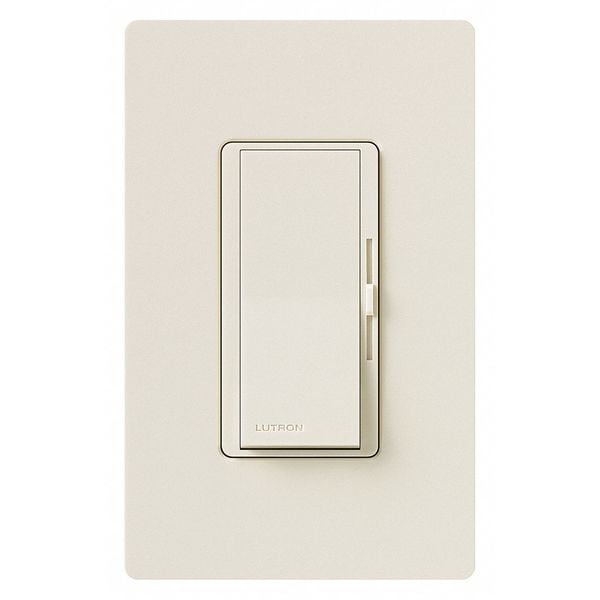

Lighting Dimmer Control, Light Almond
| Item - Motion Sensing and Dimming | Lighting Dimmer |
|---|---|
| Switch Style - Motion Sensing and Dimming | Concealed with On/Off Rocker |
| Lighting Technology | Fluorescent, LED |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Switch Type - Motion Sensing and Dimming | 1-Pole, 3-Way |
| Number of Gangs | 1 |
| Operating Voltage - Motion Sensing and Dimming | 120 to 277V AC |
| Max. Capacity @ 120VAC | 8 A (Fluorescent Ballast, LED) |
| Max. Capacity @ 277VAC | 8 A (Fluorescent, LED) |
| Color - Motion Sensing and Dimming | Light Almond |
| Color | Light Almond |
| Item | Lighting Dimmer |
| Description/Special Features | Paddle On/Off and Mini Slider to Dim or Brighten |
| Control Method | 8A Switching w/ 0-10V control |
| Lamp Type | Electronic Ballasts, LED Drivers |
| Wall Plate | Not included |
| Switch Type | 1-Pole, 3-Way |
| Ballast Type - Light Dimming | 0 to 10V Dimming LED Driver, 0 to10V Dimming Fluorescent Ballast |
| Style | Paddle |
| Wall Box Size | Single Gang |
| Voltage | 120 to 277V |
| Max. Capacity | 8A Load Switching or 50mA 0-10V Sink Limited |
| Standards | CSA Certified, UL Listed |
| Installation Location - Motion Sensor | Wall Switch Box |
| Number of Buttons | 1 |
| Switch Style | Rocker On/Off, Mini-Slide Dimming |
| Overall Width | 2.94 in |
| Neutral Required | No |
| Dimming Type | Full Continuous Dimming |
| Includes Wall Plate | Wall Plate Not Included |
| Number of Switches | 1 |
| Overall Height | 4.69 in |
| Current Rating | 8 A |
| Dimming Method | 0-10V |
| Maximum Operating Temperature | 104 deg F |
| Minimum Operating Temperature | 32 deg F |
| Nightlight | No |
| Load Rating @ 277V AC | 8A (Fluorescent Ballast, LED) |
| Series | Diva |
| Ballast Type | 0 to 10V Ballast, 0 to 10V Dimming Fluorescent Ballast Dimming LED Driver |
| Overall Depth | 0.3 in |
| Rated Frequency | 50/60 Hz |
| Compatible with Series | Claro |
| Load Rating @ 120V AC | 8.0A (Fluorescent Ballast, LED) |
| Illuminated | No |
| Package Quantity | 1 |
