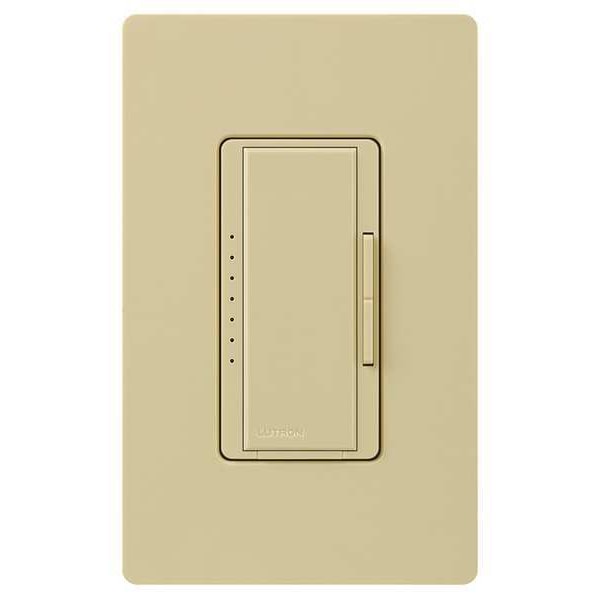

Lighting Dimmer, Incand, Rocker, Ivory, 120V
| Item - Motion Sensing and Dimming | Lighting Dimmer |
|---|---|
| Includes | Wire Nuts |
| Lighting Technology | Fluorescent, Halogen, Incandescent, LED |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Switch Type - Motion Sensing and Dimming | 1-Pole, 3-Way, Multilocation |
| Number of Gangs | 1 |
| Operating Voltage - Motion Sensing and Dimming | 120V AC |
| Max. Capacity @ 120VAC | 150 W (CFL, LED), 600 W (Halogen, Incandescent) |
| Color - Motion Sensing and Dimming | Ivory |
| Description/Special Features | LEDs Indicate Light Level, Tap Off, Tap On to Favorite Level, Tap Twice for Full On |
| Style | Rocker |
| Item | Lighting Dimmer |
| Color | Ivory |
| Switch Type | 1-Pole, 3-Way, Multilocation |
| Voltage | 120VAC |
| Installation Location - Motion Sensor | Wall Switch Box |
| Standards | NOM, UL 1472/CSA C22.2 184.1 |
| Wall Box Size | Single Gang |
| Wall Plate | Not included |
| Lamp Type | CFL, LED, Halogen, Incandescent |
| Max. Capacity | 150W (CFL/LED), 600W (Incandescent/Halogen) |
| Number of Buttons | 3 |
| Switch Style | Push Button On/Off, Rocker Dimming |
| Series | Maestro CL |
| Overall Depth | 1.46 in |
| Overall Width | 2.94 in |
| Ballast Type | Compact Fluorescent Ballast, Hi-lume LED Driver |
| Minimum Operating Temperature | 32 deg F |
| Includes Wall Plate | Wall Plate Not Included |
| Neutral Required | No |
| Overall Height | 4.69 in |
| Load Rating @ 120V AC | 150W (LED), 600W (Halogen, Incandescent) |
| Rated Frequency | 60 Hz |
| Dimming Method | Line Voltage |
| Dimming Type | Full Continuous Dimming |
| Maximum Operating Temperature | 104 deg F |
| Compatible with Series | Claro |
| Load Rating @ 277V AC | Not Applicable |
| Nightlight | Yes |
| Coordinating Wallplates | Single Gang Wallplate CW-1-XX ; SC-1-XX 2-Gang Wallplate CW-2-XX ; SC-2-XX |
| Maximum Wattage | 150W for Dimmable CFL/LED bulbs; 600W for Incandescents/Halogens |
| Bulb Compatibility | Dimmable CFLs; Dimmable LEDs; Incandescents; Halogens |
| Application Type | Single-Pole, 3-Way, or Multi-Location |
| Package Quantity | 1 |
