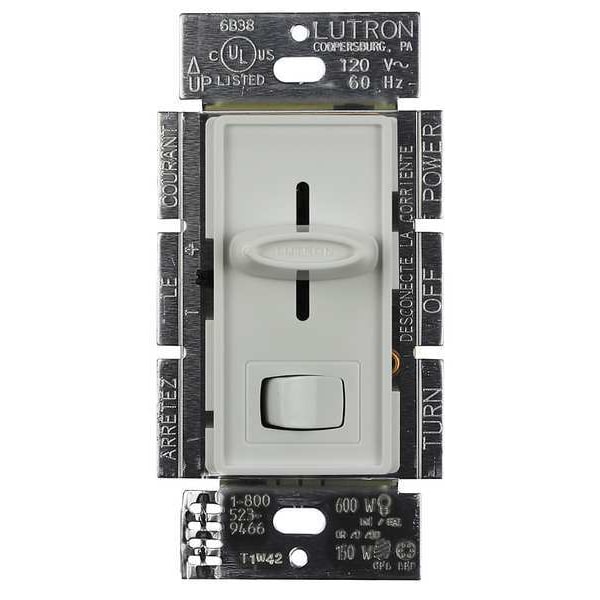

Lighting Dimmer, Rocker/Slide, 3-Way, White
| Item - Motion Sensing and Dimming | Lighting Dimmer |
|---|---|
| Switch Style - Motion Sensing and Dimming | Slide with On/Off Rocker |
| Includes | Wire Nuts |
| Lighting Technology | Fluorescent |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Switch Type - Motion Sensing and Dimming | 1-Pole, 3-Way |
| Number of Gangs | 1 |
| Operating Voltage - Motion Sensing and Dimming | 277V AC |
| Max. Capacity @ 277VAC | 6 A (Fluorescent) |
| Color - Motion Sensing and Dimming | White |
| Color | White |
| Max. Capacity | 6A |
| Lamp Type | (3) Wire Fluorescents, Hi-Lume(R) LED Drivers |
| Switch Type | 1-Pole, 3-Way |
| Style | Rocker/Slide |
| Control Method | 3-Wire |
| Installation Location - Motion Sensor | Wall Switch Box |
| Item | Lighting Dimmer |
| Wall Plate | Not included |
| Wall Box Size | Single Gang |
| Voltage | 277VAC |
| Ballast Type - Light Dimming | 3-Wire Dimming Fluorescent Ballast, 3-Wire Dimming LED Driver |
| Standards | CSA Certified, UL Listed |
| Description/Special Features | Adjustable Low-End Trim |
| Switch Style | Rocker On/Off, Slide Dimming |
| Overall Width | 2 in |
| Load Rating @ 277V AC | 6A (Fluorescent) |
| Includes Wall Plate | Wall Plate Not Included |
| Minimum Operating Temperature | 32 deg F |
| Rated Frequency | 60 Hz |
| Ballast Type | 3-Wire Dimming Fluorescent Ballast, 3-Wire Dimming LED Driver |
| Series | Skylark |
| Load Rating @ 120V AC | Not Applicable |
| Maximum Operating Temperature | 104 deg F |
| Dimming Type | Full Continuous Dimming |
| Overall Depth | 2-1/2 in |
| Current Rating | 6 A |
| Overall Height | 3 in |
| Neutral Required | Yes |
| Compatible with Series | Claro |
| Package Quantity | 1 |
