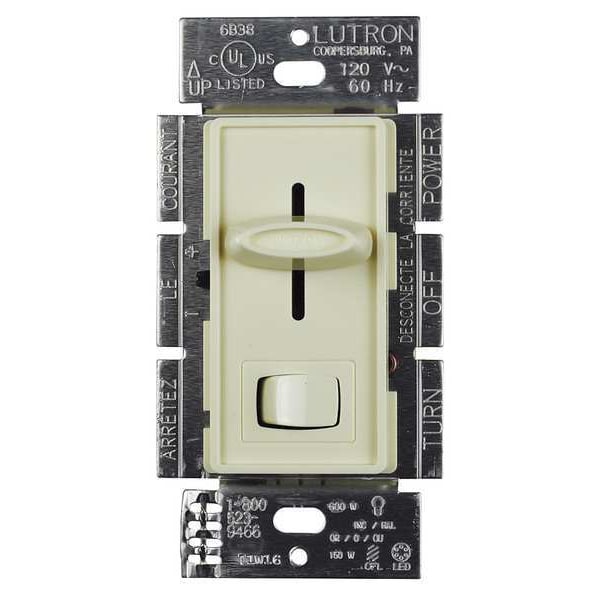

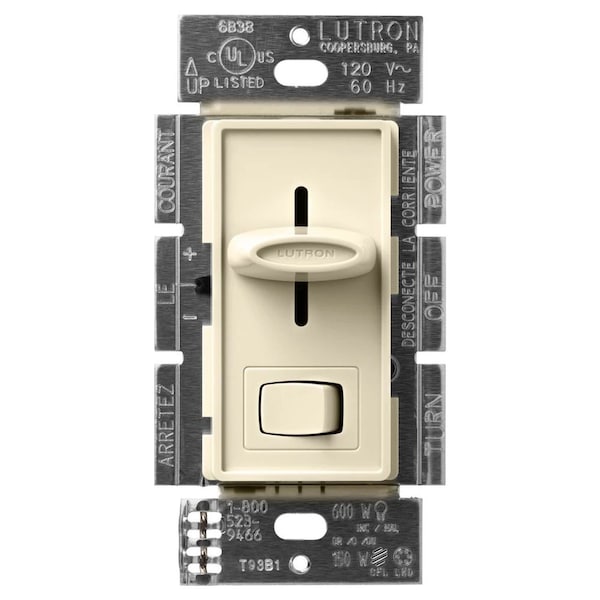

Lighting Dimmer, Rocker/Slide, Almond
| Item - Motion Sensing and Dimming | Lighting Dimmer |
|---|---|
| Switch Style - Motion Sensing and Dimming | Slide with On/Off Rocker |
| Lighting Technology | Fluorescent, Halogen, Incandescent, LED |
| Includes | Wire Nuts |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Switch Type - Motion Sensing and Dimming | 1-Pole, 3-Way |
| Number of Gangs | 1 |
| Operating Voltage - Motion Sensing and Dimming | 120V AC |
| Max. Capacity @ 120VAC | 150 W (CFL, LED), 600 W (Halogen, Incandescent) |
| Color - Motion Sensing and Dimming | Almond |
| Lamp Type | CFL, LED, Halogen, Incandescent |
| Color | Almond |
| Item | Lighting Dimmer |
| Wall Plate | Not included |
| Standards | NOM, UL 1472/CSA C22.2 184.1 |
| Style | Rocker/Slide |
| Control Method | 2-Wire |
| Description/Special Features | UL Listed to Control Dimmable Compact Fluorescent Lamps with Integrated Ballast, Dimmable LED with Integrated Driver, Halogen, Incandescent, Low-End Adjustment to Accommodate A Wide Range of Bulbs, Switch Returns Load to Previous Level, For Use With Fluorescent, LED, CFL |
| Wall Box Size | Single Gang |
| Max. Capacity | 600W (Incandescent/Halogen), 150W (Dimmable CFL/LED) |
| Installation Location - Motion Sensor | Wall Switch Box |
| Switch Type | 1-Pole, 3-Way |
| Voltage | 120VAC |
| Switch Style | Rocker On/Off, Slide Dimming |

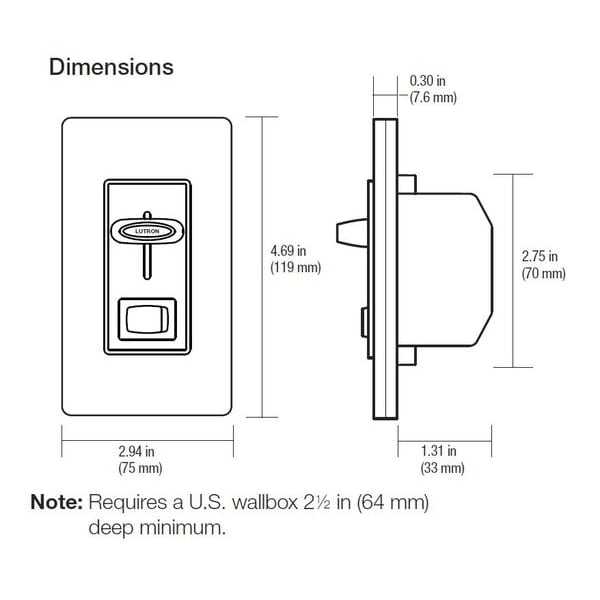

| Overall Depth | 0.3 in |
| Load Rating @ 120V AC | 150W (CFL, LED), 600W (Halogen, Incandescent) |
| Number of Switches | 1 |
| Rated Frequency | 60 Hz |
| Load Rating @ 277V AC | Not Applicable |
| Includes Wall Plate | Wall Plate Not Included |
| Compatible with Series | Claro |
| Overall Width | 2.94 in |
| Maximum Operating Temperature | 104 deg F |
| Neutral Required | No |
| Overall Height | 4.69 in |
| Minimum Operating Temperature | 32 deg F |
| Dimming Type | Full Continuous Dimming |
| Dimming Method | Line Voltage |
| Series | Skylark |
| Ballast Type | Compact Fluorescent Ballast, Hi-lume LED Driver |
| Coordinating Wallplates | Single Gang Wallplate CW-1-XX ; 2-Gang Wallplate CW-2-XX |
| Bulb Compatibility | Dimmable CFLs; Dimmable LEDs; Incandescents; Halogens |
| Application Type | Single-Pole or 3-Way |
| Maximum Wattage | 150W for Dimmable CFL/LED bulbs; 600W for Incandescents/Halogens |
| Package Quantity | 1 |
