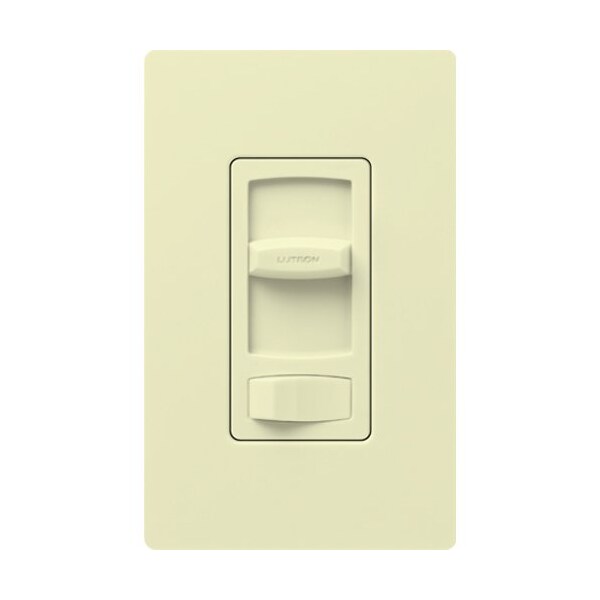

Regulador de intensidad de iluminación, de estilo deslizable y diseño elegante, con capacidad de 300W y acabado en color almendra.
| Item - Motion Sensing and Dimming | Lighting Dimmer |
|---|---|
| Switch Style - Motion Sensing and Dimming | Slide with On/Off Rocker |
| Includes | Wire Nuts |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Switch Type - Motion Sensing and Dimming | 1-Pole, 3-Way |
| Number of Gangs | 1 |
| Operating Voltage - Motion Sensing and Dimming | 120V AC |
| Max. Capacity @ 120VAC | 300 W (ELV) |
| Color - Motion Sensing and Dimming | Almond |
| Lamp Type | Electronic Low Voltage |
| Lighting Technology | Low Voltage |
| Item | Lighting Dimmer |
| Color | Almond |
| Wall Plate | Not included |
| Ballast Type - Light Dimming | Electronic Low Voltage Transformer |
| Style | Rocker |
| Wall Box Size | Single Gang |
| Switch Type | 1-Pole, 3-Way |
| Installation Location - Motion Sensor | Wall Switch Box |
| Description/Special Features | On/Off Rocker Switch With a Captive Linear-Slide Dimmer |
| Standards | UL Listed |
| Voltage | 120VAC |
| Max. Capacity | 300W |
| Switch Style | Rocker On/Off, Slide Dimming |
| Neutral Required | Yes |
| Overall Height | 4.69 in |
| Includes Wall Plate | Wall Plate Not Included |
| Minimum Operating Temperature | 32 deg F |
| Ballast Type | Low Voltage Transformer |
| Load Rating @ 277V AC | Not Applicable |
| Number of Switches | 1 |
| Dimming Method | ELV/Reverse Phase |
| Dimming Type | Full Continuous Dimming |
| Maximum Operating Temperature | 104 deg F |
| Overall Width | 2.94 in |
| Compatible with Series | Claro |
| Overall Depth | 0.3 in |
| Rated Frequency | 60 Hz |
| Load Rating @ 120V AC | 300W (ELV) |
| Series | Skylark |
| Coordinating Wallplates | Single Gang Wallplate CW-1-XX 2-Gang Wallplate CW-2-XX |
| Bulb Compatibility | Electronic Low Voltage |
| Maximum Wattage | 300 Watts |
| Application Type | Single-Pole or 3-Way |
| Operating Voltage | 120V AC |
| Package Quantity | 1 |
