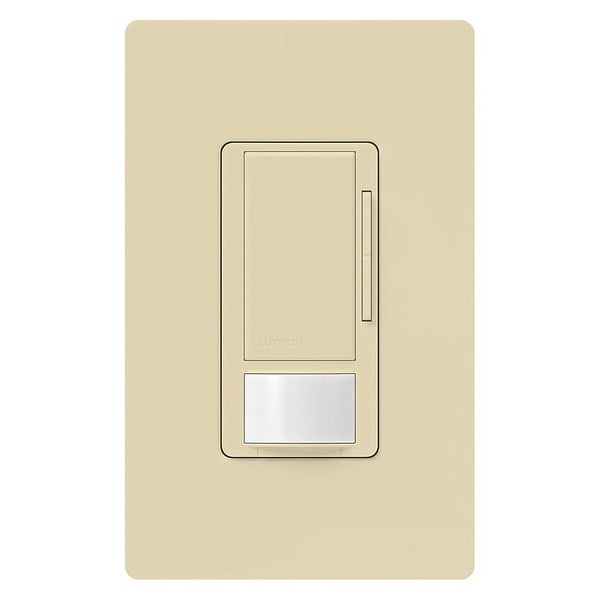

Occ/Vac Dimmer Snsr, Wall, Ivory
| Item - Motion Sensing and Dimming | Motion Sensor |
|---|---|
| Use With - Motion Sensing and Dimming | 0 to 10V DC Dimming Ballasts |
| Lighting Technology | Fluorescent, LED |
| Includes | Yellow Jumper Wire |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Number of Gangs | 1 |
| Operating Voltage - Motion Sensing and Dimming | 120 to 277V AC |
| Max. Capacity @ 120VAC | 4.4A (Fan Motor), 8A (Fluorescent, LED) |
| Max. Capacity @ 277VAC | 8A (Fluorescent, LED) |
| Color - Motion Sensing and Dimming | White |
| Time Delay - Motion Sensor | 1 min, 15 min, 30 min, 5 min |
| Coverage | 900 sq. ft. |
| Viewing Angle | 180 Degrees |
| Description/Special Features | XCT Technology for Major, Minor, Fine and Very Fine Motion Detection, Smart Ambient Light Detection (ALD), Single Pole and 3-Way Switch Capability, Decora Style, 0-10V Dimmer |
| Standards | Title 20/24 Compliant, UL Listed |
| Voltage | 120 to 277VAC |
| For Use With | 8A Electronic Fluorescent Ballast or LED Drivers |
| Time Delay | Adjustable |
| Installation Location - Motion Sensor | Wall Switch Box |
| Sensing Technology | Passive Infrared |
| Installation Type | Wall |
| Time Delay Adjustment Method - Motion Sensor | Adjustable |
| Coverage Angle - Motion Sensor | 180 Degrees |
| Suggested Mounting Height - Motion Sensor | 4 ft |
| Color | Ivory |
| Coverage at Suggested Mounting Height | 900 sq ft |
| Sensor Type | Passive Infrared |
| Item | Motion Sensor |
| Timer Range | 1, 5, 15, 30 min. |
| Wall Plate | Not included |
| Communication Method | Hard Wired |
| Number of Buttons | 3 |
| Minimum Mounting Height | Not Applicable |
| Includes Motion Sensor | Yes |
| Maximum Mounting Height | 4 ft |
| Minimum Coverage Area | 400 sq ft |
| Installation Location | Wall |
| Horsepower Rating | 3/16 hp |
| Maximum Operating Temperature | 104 deg F |
| Rated Frequency | 50/60 Hz |
| Dimming Type | Full Continuous Dimming |
| Minimum Time Delay | 1 min |
| Nightlight | No |
| Neutral Required | No |
| Manufacturer Warranty | 5 yr |
| Overall Height | 4.69 in |
| Maximum Coverage Area | 900 sq ft |
| Includes Dimming Switch | Dimming Switch Included |
| Overall Width | 2.94 in |
| Series | Maestro |
| Load Rating @ 277V AC | 8A (Fluorescent and LED) |
| Dimming Method | 0-10V |
| Time Delay Adjustment Method | Adaptive |
| Overall Depth | 0.31 in |
| Maximum Detection Distance | 30 ft |
| Maximum Time Delay | 30 min |
| Compatible with Series | 0 to 10V DC Dimming |
| Coverage Angle | 180 Degrees |
| Fan Rated | Yes |
| Includes Wall Plate | Wall Plate Not Included |
| Load Rating @ 120V AC | 8A (Fluorescent, LED) |
| Minimum Operating Temperature | 32 deg F |
| Sensor Operation | Occupancy, Photocell, Vacancy |
| Package Quantity | 1 |
