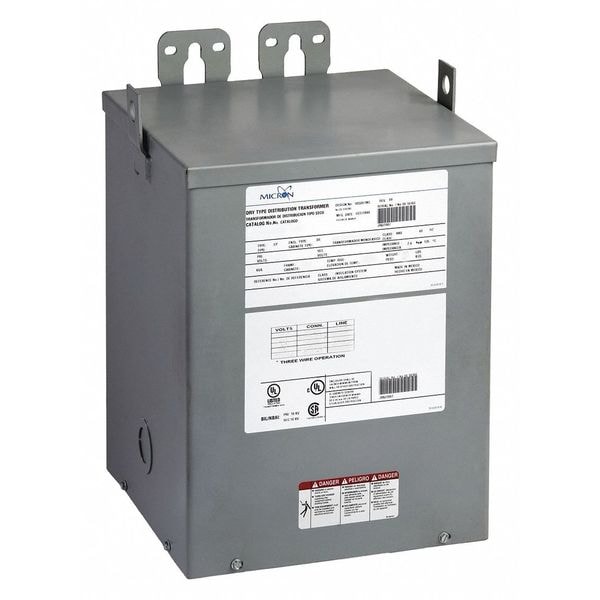

General Purpose Transformer, 5 kVA, NEMA 3R, 115°C, 120/240V, 277V
| Item | General Purpose Transformer |
|---|---|
| Input Voltage - Transformer | 277V |
| Hz - Electrical | 60 |
| Outdoor Rated - Transformer | Yes |
| Temp. Rise | 115 deg C |
| Output Voltage - Transformer | 120/240V |
| Width | 10.38 in |
| Depth | 9.89 in |
| Height | 16 in |
| VA Rating - Transformer | 5 kVA |
| Phase - Electrical | 1 |
| Enclosure Rating | NEMA 3R |
| Package Quantity | 1 |
