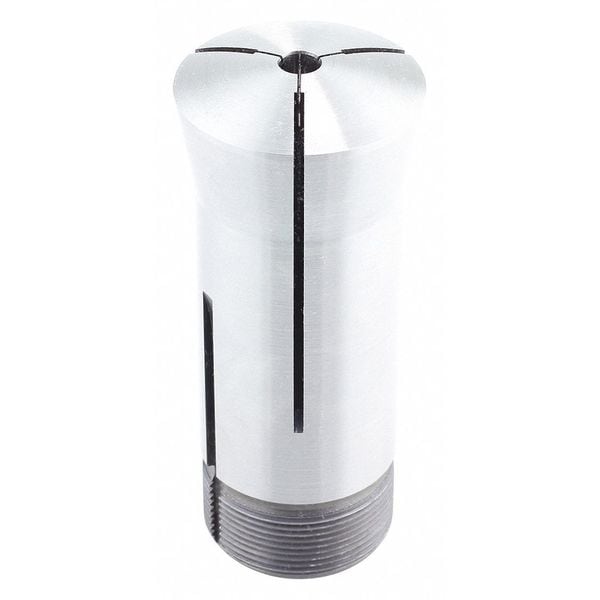

Collet, 5C, 1-5/64in
| Item | Collet |
|---|---|
| Collet Series | 5C |
| Range | Exact Size |
| Size | 1-5/64" |
| Coolant Through | No |
| For Use With | Collet System |
| Coolant Fed | Non-Coolant Through |
| Max. Bore Dia. | 1-1/8 in |
| Max. Body Dia. | 1-5/64 in |
| TIR Max. | 0.0015 in |
| Head Dia. | 1.485 in |
| Number of Slots | 3 |
| Taper Angle | 20 deg |
| Internal Thread Size | 1.042"-24 |
| Internal Thread Direction | Right Hand |
| Min. Size | 1-5/64 in |
| Overall Length | 3-9/32 in |
| Measurement System | Inch |
| External Thread Direction | Right Hand |
| Collet Type | Standard |
| Face Shape | Round |
| Outside Diameter - Maximum | 1.47 in |
| Bore Shape | Round |
| Collapse Range - Maximum | 1.078 in |
| Clamping Hole Length | 1-9/16 in |
| T.I.R. Tolerance | 0.0015 in |
| External Thread Size | 1.238-20 |
| Package Quantity | 1 |
