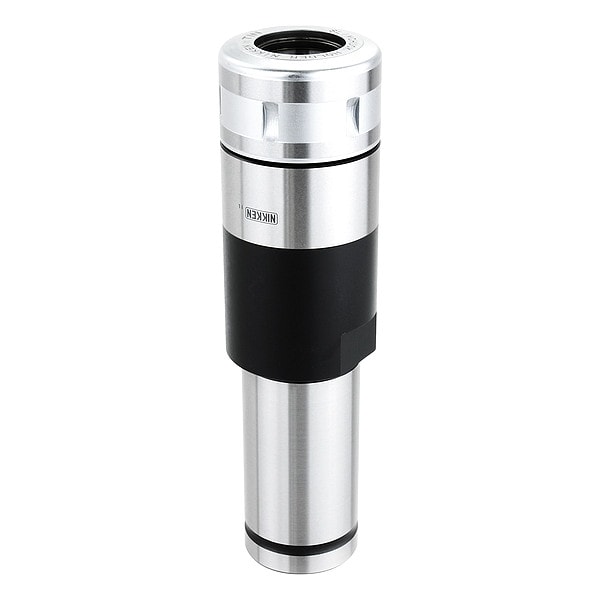

Collet Chuck, 1-1/4in, SK25, Project 150mm
| Item | Collet Chuck |
|---|---|
| Collet Series | SK25 |
| For Use With | SK Collets |
| Nut Dia. | 2.165 in |
| Max. Collet Capacity | 1 in |
| Material | High Speed Steel |
| Min. Collet Capacity | 0.61 in |
| Projection | 5.91 in |
| Balanceable | No |
| Coolant Through | Yes |
| Pre-Balanced | Yes |
| Overall Length | 5-29/32 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 2.165 in |
| Features | Pre-Balanced |
| Shank Diameter | 1-1/4 in |
| T.I.R. Tolerance | 0 in |
| Compatible Collet Size - Maximum | 1 in |
| Includes Coolant Screws | Coolant Screws Not Included |
| Outside Diameter - Maximum | 2.17 in |
| Shank Type | Straight |
| Finish | Heat Treated |
| Compatible Collet Size - Minimum | 0.188 in |
| Product Type | Straight Shank Collet Chuck |
| Speed - Maximum | 30,000 rpm |
| Compatible Collet Series | SK25 |
| Includes Nut | Nut Included |
| Operating Pressure - Maximum | 1,200 psi |
| Nut Diameter | 2.165 in |
| Torque - Maximum | 63 ft-lb |
| Coolant Supply | Coolant Through |
| Compatible Collet Wrench | 9HC22 SKJL-25 Wrench |
| Package Quantity | 1 |
