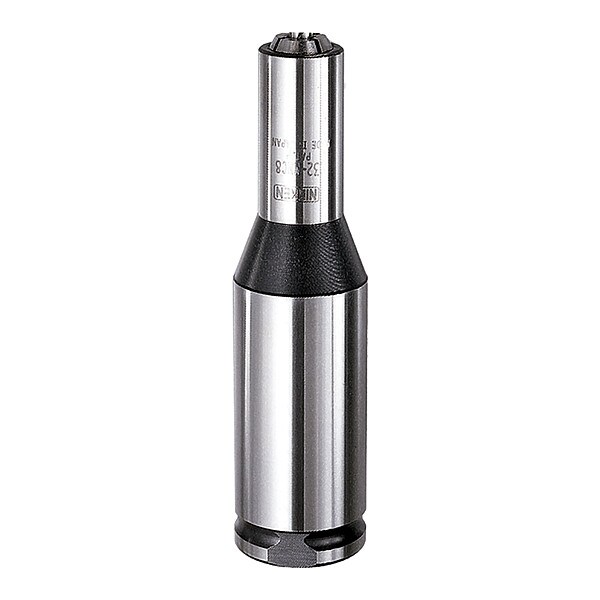

Collet Chuck, 1-1/4in, VMK8, Project 122mm
| Item | Collet Chuck |
|---|---|
| Collet Series | VMK8 |
| For Use With | MPK/VMK Collets |
| Min. Collet Capacity | 0.079 in |
| Max. Collet Capacity | 0.314 in |
| Coolant Through | Yes |
| Balanceable | No |
| Pre-Balanced | Yes |
| Material | High Speed Steel |
| Projection | 4.92 in |
| Overall Length | 4-51/64 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 0.787 in |
| Features | Pre-Balanced |
| Compatible Collet Size - Minimum | 0.079 in |
| Torque - Maximum | 15 ft-lb |
| Compatible Collet Size - Maximum | 0.394 in |
| Shank Diameter | 1-1/4 in |
| Outside Diameter - Maximum | 0.79 in |
| Balance Rating | G2.5 |
| Nose Diameter | 0.787 in |
| Coolant Supply | Coolant Through |
| Compatible Collet Series | MMC8 |
| T.I.R. Tolerance | 0 in |
| Shank Type | Straight |
| Compatible Collet Wrench | ALLEN6 Wrench |
| Speed - Maximum | 30,000 rpm |
| Includes Nut | Nut Not Included |
| Product Type | Straight Shank Collet Chuck |
| Package Quantity | 1 |
