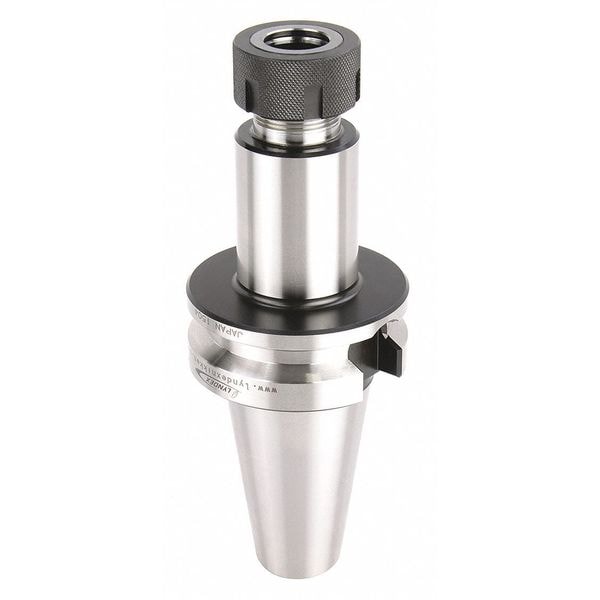

Collet Chuck, BT30,300DA, Project 3in
| Item | Collet Chuck |
|---|---|
| Collet Series | DA300 |
| For Use With | TG Collets |
| Coolant Through | Yes |
| Material | Molybdenum |
| Projection | 1-3/4 in |
| Min. Collet Capacity | 0.047 in |
| Balanceable | No |
| Max. Collet Capacity | 1/4 in |
| Taper Size | BT30 |
| Pre-Balanced | Yes |
| Nut Dia. | 3/4 in |
| Overall Length | 3-21/32 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 3/4 in |
| Features | Pre-Balanced |
| Compatible Collet Wrench | 25TG-HEX |
| Product Type | BT Collet Chuck |
| Includes Nut | Nut Included |
| T.I.R. Tolerance | 0 in |
| Nut Diameter | 3/4 in |
| Includes Coolant Screws | Coolant Screws Included |
| Shank Type | Taper |
| Coolant Supply | Coolant Through |
| Finish | Nickel Chrome |
| Compatible Collet Size - Minimum | 0.0469 in |
| Speed - Maximum | 18,000 rpm |
| Compatible Collet Series | TG25 |
| Package Quantity | 1 |
