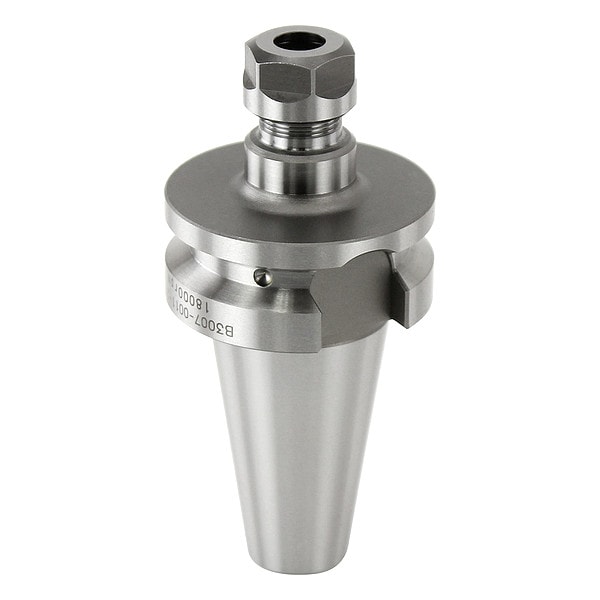

Collet Chuck, BT30, ER11, Project 2in
| Item | Collet Chuck |
|---|---|
| Collet Series | ER11 |
| For Use With | ER Collets |
| Min. Collet Capacity | 0.019 in |
| Coolant Through | Yes |
| Material | Molybdenum |
| Taper Size | BT30 |
| Nut Dia. | 3/4 in |
| Projection | 2 in |
| Balanceable | No |
| Max. Collet Capacity | 0.275 in |
| Pre-Balanced | Yes |
| Overall Length | 3-29/32 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 3/4 in |
| Features | Pre-Balanced |
| Standards | DIN 6499 |
| T.I.R. Tolerance | 0 in |
| Includes Coolant Screws | Coolant Screws Included |
| Coolant Supply | Coolant Through |
| Outside Diameter - Maximum | 3/4 in |
| Product Type | BT Collet Chuck |
| Compatible Collet Wrench | 011-HEX |
| Nut Diameter | 3/4 in |
| Compatible Collet Size - Minimum | 0.019 in |
| Shank Type | Taper |
| Compatible Collet Size - Maximum | 0.276 in |
| Compatible Collet Series | ER11 |
| Speed - Maximum | 23,000 rpm |
| Includes Nut | Nut Included |
| Finish | Nickel Chrome |
| Shank Thread Size | M14 |
| Compatible Nut Model Number | E11-NUT |
| Torque - Maximum | 18 ft-lb |
| Package Quantity | 1 |
