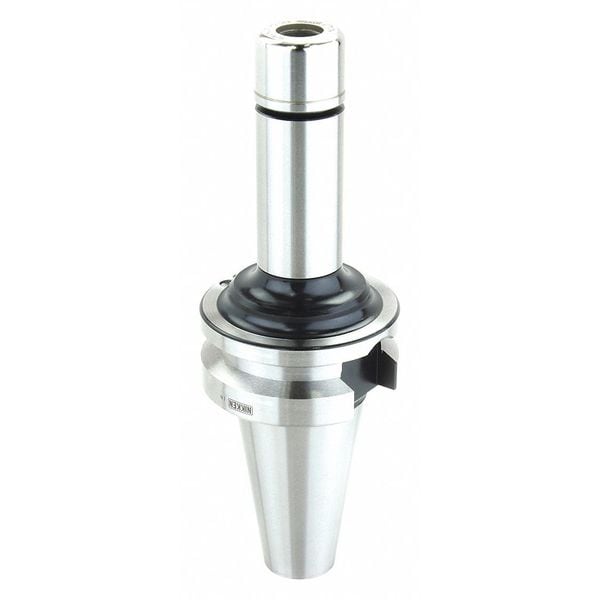

Collet Chuck, BT30, SK10-60
| Item | Collet Chuck |
|---|---|
| Collet Series | SK10 |
| For Use With | SK Collets |
| Taper Size | BT30 |
| Nut Dia. | 1.083 in |
| Min. Collet Capacity | 0.069 in |
| Material | High Speed Steel |
| Max. Collet Capacity | 0.393 in |
| Balanceable | No |
| Pre-Balanced | Yes |
| Projection | 1.77 in |
| Coolant Through | Yes |
| Overall Length | 3-43/64 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 1.083 in |
| Features | Pre-Balanced |
| Compatible Collet Size - Maximum | 0.394 in |
| Finish | Heat Treated |
| Compatible Collet Wrench | GH10 |
| Shank Type | Taper |
| Product Type | BT Collet Chuck |
| Compatible Collet Size - Minimum | 0.035 in |
| Operating Pressure - Maximum | 1,200 psi |
| Includes Coolant Screws | Coolant Screws Not Included |
| Speed - Maximum | 30,000 rpm |
| Coolant Supply | Coolant Through |
| Outside Diameter - Maximum | 1.08 in |
| Compatible Collet Series | SK10 |
| Includes Nut | Nut Included |
| Nut Diameter | 1.083 in |
| T.I.R. Tolerance | 0 in |
| Torque - Maximum | 41 ft-lb |
| Balance Rating | G2.5 |
| Package Quantity | 1 |
