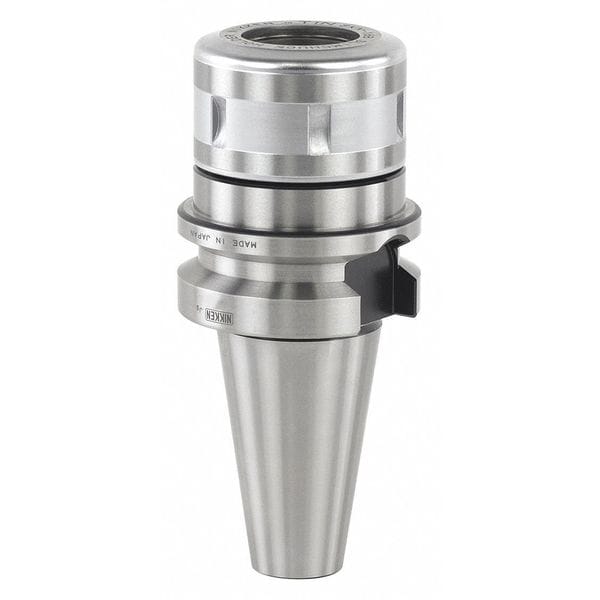

Collet Chuck, BT30, SK16, 60P
| Item | Collet Chuck |
|---|---|
| Collet Series | SK16 |
| For Use With | SK Collets |
| Min. Collet Capacity | 0.108 in |
| Coolant Through | Yes |
| Taper Size | BT30 |
| Max. Collet Capacity | 0.629 in |
| Balanceable | No |
| Projection | 2.36 in |
| Pre-Balanced | Yes |
| Nut Dia. | 1.575 in |
| Material | High Speed Steel |
| Overall Length | 4-17/64 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 1.575 in |
| Features | Pre-Balanced |
| Compatible Collet Size - Minimum | 0.108 in |
| Coolant Supply | Coolant Through |
| Compatible Collet Size - Maximum | 0.63 in |
| Nut Diameter | 1.575 in |
| Outside Diameter - Maximum | 1.58 in |
| Product Type | BT Collet Chuck |
| T.I.R. Tolerance | 0 in |
| Torque - Maximum | 55 ft-lb |
| Includes Nut | Nut Included |
| Includes Coolant Screws | Coolant Screws Not Included |
| Shank Type | Taper |
| Speed - Maximum | 15,000 rpm |
| Compatible Backup Screw Model Number | SKG-12L |
| Operating Pressure - Maximum | 1,200 psi |
| Finish | Heat Treated |
| Compatible Collet Wrench | 9HC16 |
| Compatible Collet Series | SK16 |
| Package Quantity | 1 |
