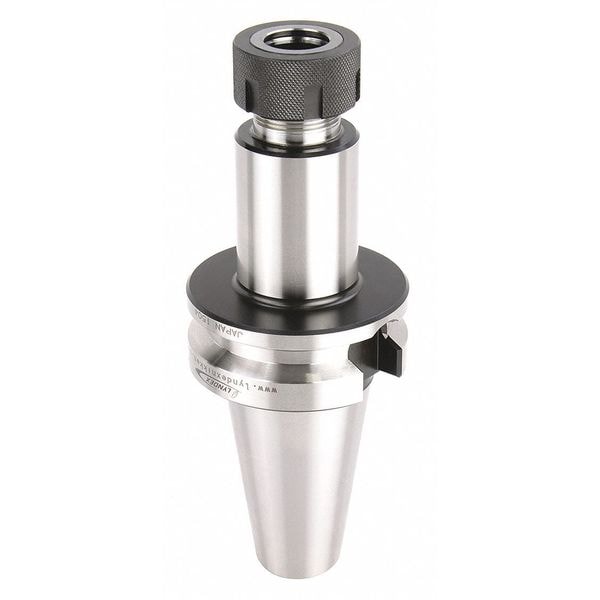

Collet Chuck, BT30, VMK12, Project 105mm
| Item | Collet Chuck |
|---|---|
| Collet Series | VMK12 |
| For Use With | MPK/VMK Collets |
| Coolant Through | Yes |
| Max. Collet Capacity | 1-1/2 in |
| Balanceable | No |
| Pre-Balanced | Yes |
| Material | Molybdenum |
| Min. Collet Capacity | 0.047 in |
| Taper Size | BT50 |
| Projection | 6 in |
| Overall Length | 10-1/64 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 3-1/2 in |
| Features | Pre-Balanced |
| Finish | Nickel Chrome |
| Shank Type | Taper |
| Compatible Collet Size - Maximum | 1-1/2 in |
| Compatible Collet Size - Minimum | 1/2 in |
| Compatible Collet Series | TG150 |
| Nut Diameter | 3-1/2 in |
| Includes Coolant Screws | Coolant Screws Included |
| Compatible Collet Wrench | 150TG-SPAN |
| Includes Nut | Nut Included |
| Speed - Maximum | 20,000 rpm |
| Product Type | BT Collet Chuck |
| Coolant Supply | Coolant Through |
| T.I.R. Tolerance | 0 in |
| Package Quantity | 1 |
