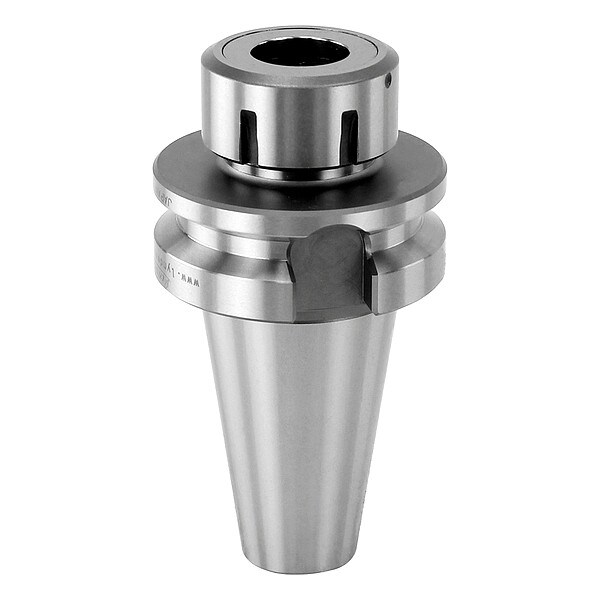

Collet Chuck, BT40,100DA, Project 3.500in
| Item | Collet Chuck |
|---|---|
| Collet Series | ER25 |
| For Use With | ER Collets |
| Nut Dia. | 1.65 in |
| Material | Molybdenum |
| Min. Collet Capacity | 0.039 in |
| Balanceable | No |
| Projection | 2-1/4 in |
| Taper Size | BT40 |
| Max. Collet Capacity | 0.629 in |
| Coolant Through | Yes |
| Pre-Balanced | Yes |
| Overall Length | 4-53/64 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 1.65 in |
| Features | Pre-Balanced |
| Standards | DIN 6499 |
| Compatible Collet Series | ER25 |
| T.I.R. Tolerance | 0 in |
| Includes Coolant Screws | Coolant Screws Included |
| Nut Diameter | 1.65 in |
| Outside Diameter - Maximum | 1.65 in |
| Speed - Maximum | 23,000 rpm |
| Compatible Nut Model Number | E25-NUT |
| Compatible Collet Size - Maximum | 0.63 in |
| Finish | Nickel Chrome |
| Torque - Maximum | 73 ft-lb |
| Shank Thread Size | M32 |
| Compatible Collet Wrench | 025-SPAN |
| Includes Nut | Nut Included |
| Compatible Collet Size - Minimum | 0.019 in |
| Product Type | BT Collet Chuck |
| Shank Type | Taper |
| Coolant Supply | Coolant Through |
| Package Quantity | 1 |
