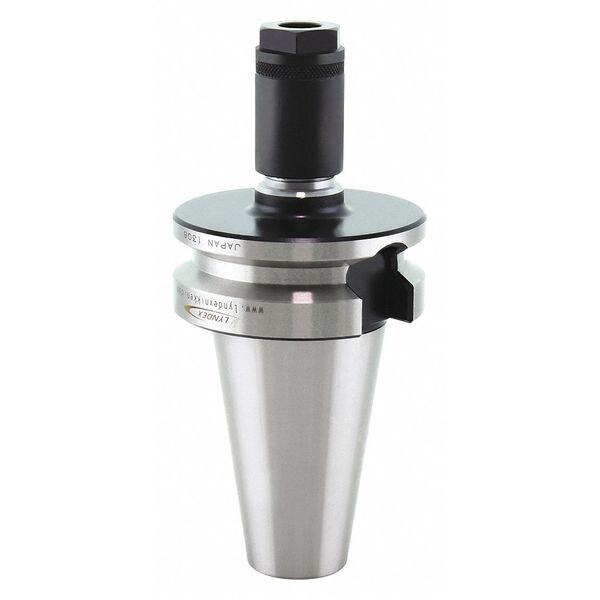

Collet Chuck, BT50,150TG, Project 4in
| Item | Collet Chuck |
|---|---|
| Collet Series | DA180 |
| For Use With | DA Collets |
| Coolant Through | Yes |
| Material | Molybdenum |
| Max. Collet Capacity | 3/4 in |
| Pre-Balanced | Yes |
| Nut Dia. | 1.44 in |
| Balanceable | No |
| Min. Collet Capacity | 0.047 in |
| Taper Size | BT50 |
| Projection | 4 in |
| Overall Length | 8-1/64 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 1.44 in |
| Features | Pre-Balanced |
| Speed - Maximum | 10,000 rpm |
| Product Type | BT Collet Chuck |
| Number of Coolant Ports | 0 |
| Coolant Supply | Non-Coolant Through |
| Compatible Collet Size - Minimum | 0.0469 in |
| Finish | Nickel Chrome |
| Compatible Collet Series | DA180 |
| Shank Type | Taper |
| Includes Nut | Nut Included |
| Nut Diameter | 1.44 in |
| Package Quantity | 1 |
