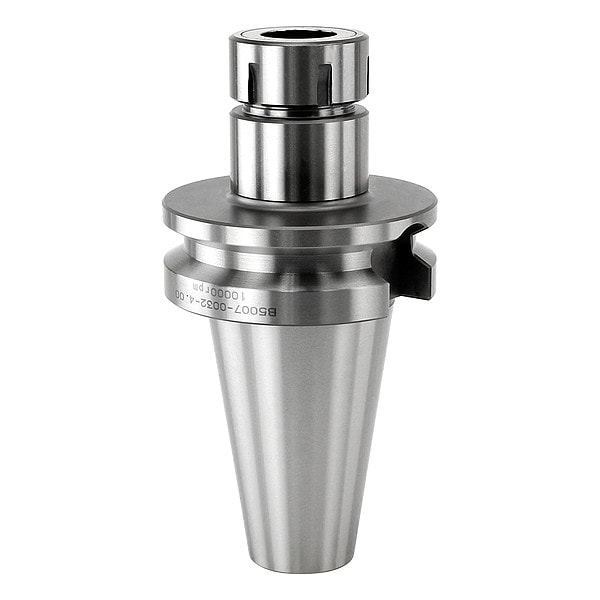

Collet Chuck, BT50,180DA, Project 4in
| Item | Collet Chuck |
|---|---|
| Collet Series | ER32 |
| For Use With | ER Collets |
| Nut Dia. | 1.97 in |
| Balanceable | No |
| Taper Size | BT50 |
| Pre-Balanced | Yes |
| Projection | 4 in |
| Max. Collet Capacity | 0.787 in |
| Min. Collet Capacity | 0.078 in |
| Coolant Through | Yes |
| Material | Molybdenum |
| Overall Length | 8-1/64 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 2 in |
| Features | Pre-Balanced |
| Standards | DIN 6499 |
| Compatible Collet Series | ER32 |
| Includes Coolant Screws | Coolant Screws Included |
| Shank Type | Taper |
| Outside Diameter - Maximum | 1.97 in |
| Coolant Supply | Coolant Through |
| Finish | Nickel Chrome |
| Speed - Maximum | 23,000 rpm |
| Includes Nut | Nut Included |
| Product Type | BT Collet Chuck |
| Shank Thread Size | M40 |
| Number of Coolant Ports | 4 |
| Compatible Collet Wrench | 032-SPAN |
| Nut Diameter | 2 in |
| Torque - Maximum | 100 ft-lb |
| Compatible Collet Size - Maximum | 0.787 in |
| Compatible Nut Model Number | E32-NUT |
| Compatible Collet Size - Minimum | 0.078 in |
| T.I.R. Tolerance | 0 in |
| Package Quantity | 1 |
