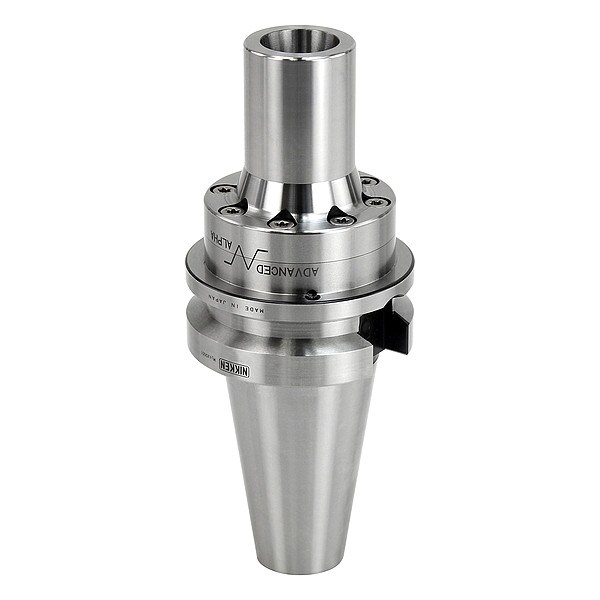

Collet Chuck, BT50, VMK12, Project 135mm
| Item | Collet Chuck |
|---|---|
| Collet Series | VMK12 |
| For Use With | MPK/VMK Collets |
| Material | High Speed Steel |
| Min. Collet Capacity | 0.158 in |
| Balanceable | No |
| Taper Size | BT50 |
| Projection | 5.31 in |
| Pre-Balanced | Yes |
| Coolant Through | Yes |
| Max. Collet Capacity | 1/2 in |
| Overall Length | 9-9/32 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 1.181 in |
| Features | Pre-Balanced |
| Coolant Supply | Coolant Through |
| Product Type | BT Collet Chuck |
| Torque - Maximum | 30 ft-lb |
| Compatible Collet Size - Minimum | 0.157 in |
| T.I.R. Tolerance | 0 in |
| Nose Diameter | 1.181 in |
| Compatible Collet Wrench | ALLEN6 |
| Compatible Collet Series | MMC12 |
| Includes Nut | Nut Not Included |
| Compatible Collet Size - Maximum | 1/2 in |
| Outside Diameter - Maximum | 1.18 in |
| Shank Type | Taper |
| Speed - Maximum | 20,000 rpm |
| Balance Rating | G2.5 |
| Package Quantity | 1 |
