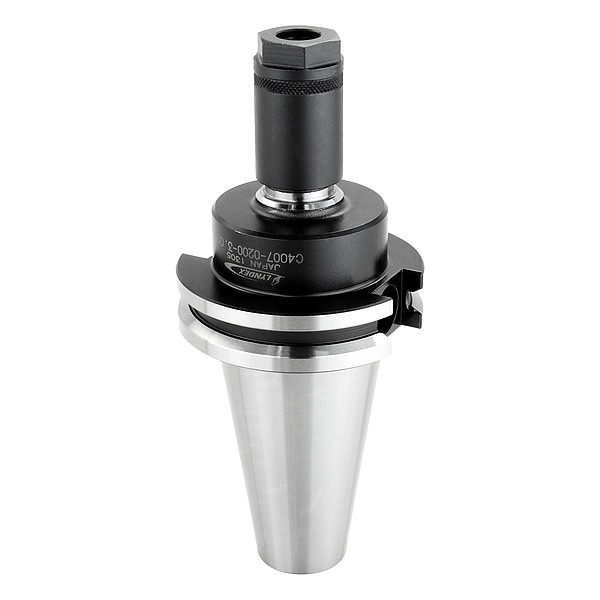

Collet Chuck, CAT40,200DA, Project 3in
| Item | Collet Chuck |
|---|---|
| Collet Series | DA200 |
| For Use With | DA Collets |
| Nut Dia. | 0.86 in |
| Coolant Through | Yes |
| Min. Collet Capacity | 0.047 in |
| Max. Collet Capacity | 3/8 in |
| Pre-Balanced | Yes |
| Balanceable | No |
| Material | Molybdenum |
| Taper Size | CAT40 |
| Projection | 3 in |
| Overall Length | 5-11/16 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 0.86 in |
| Features | Pre-Balanced |
| Outside Diameter - Maximum | 0.86 in |
| Compatible Collet Series | DA200 |
| Speed - Maximum | 20,000 rpm |
| Coolant Supply | Coolant Through |
| Shank Type | Taper |
| T.I.R. Tolerance | 0.001 in |
| Finish | Nickel Chrome |
| Compatible Collet Size - Minimum | 0.047 in |
| Includes Nut | Nut Included |
| Nut Diameter | 0.86 in |
| Includes Coolant Screws | Coolant Screws Included |
| Compatible Collet Size - Maximum | 3/8 in |
| Product Type | CAT Collet Chuck |
| Package Quantity | 1 |
