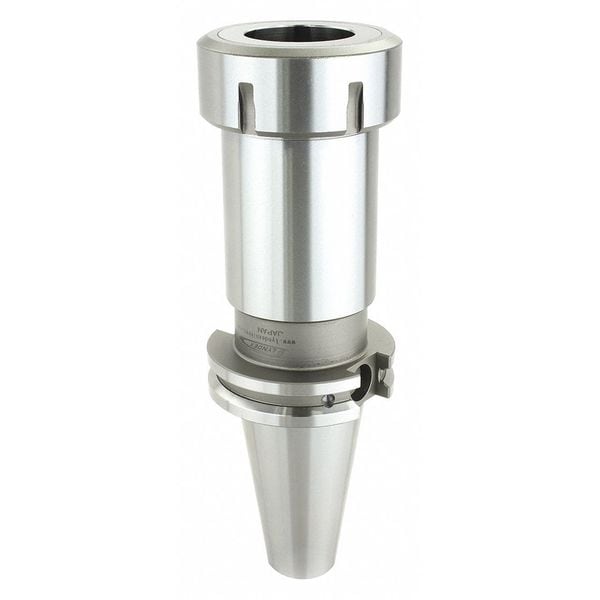

Collet Chuck, CAT40, ER16, Pjct 3.500in DIN
| Item | Collet Chuck |
|---|---|
| Collet Series | ER16 |
| For Use With | ER Collets |
| Taper Size | CAT40 |
| Coolant Through | Yes |
| Material | Molybdenum |
| Min. Collet Capacity | 0.019 in |
| Pre-Balanced | Yes |
| Max. Collet Capacity | 0.406 in |
| Nut Dia. | 1.26 in |
| Projection | 3-1/2 in |
| Balanceable | No |
| Coolant Fed | Coolant Through |
| Nose Dia. | 1.26 in |
| Features | Pre-Balanced |
| Standards | DIN 69871 |
| Compatible Collet Size - Minimum | 0.019 in |
| Nut Diameter | 1.26 in |
| Compatible Collet Series | ER16 |
| Coolant Supply | Coolant Through |
| Product Type | CAT Collet Chuck |
| Speed - Maximum | 23,000 rpm |
| Finish | Nickel Chrome |
| Includes Nut | Nut Included |
| Compatible Collet Wrench | 016-SPAN |
| Compatible Collet Size - Maximum | 0.406 in |
| Includes Coolant Screws | Coolant Screws Included |
| Shank Type | Taper |
| T.I.R. Tolerance | 0 in |
| Package Quantity | 1 |
