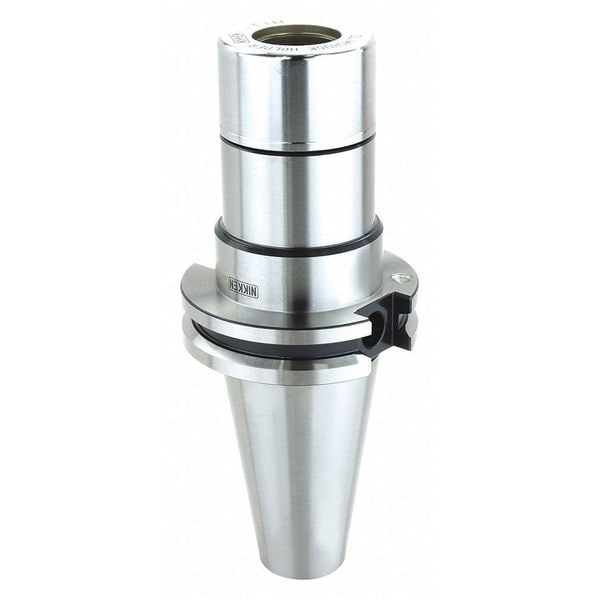

Collet Chuck, CAT40, VC13, Project 90mm
| Item | Collet Chuck |
|---|---|
| Collet Series | SK6 |
| For Use With | VC Collets |
| Projection | 5.906 in |
| Balanceable | No |
| Min. Collet Capacity | 0.028 in |
| Max. Collet Capacity | 0.236 in |
| Nut Dia. | 1.575 in |
| Taper Size | CAT40 |
| Pre-Balanced | Yes |
| Coolant Through | Yes |
| Material | High Speed Steel |
| Overall Length | 8-37/64 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 0.768 in |
| Features | Pre-Balanced |
| Compatible Collet Size - Minimum | 0.028 in |
| Compatible Collet Size - Maximum | 0.236 in |
| Nut Diameter | 0.768 in |
| Compatible Collet Wrench | GH6 |
| Speed - Maximum | 30,000 rpm |
| Shank Type | Taper |
| Includes Coolant Screws | Coolant Screws Not Included |
| Operating Pressure - Maximum | 1,200 psi |
| T.I.R. Tolerance | 0 in |
| Compatible Collet Series | SK6 |
| Product Type | CAT Collet Chuck |
| Includes Nut | Nut Included |
| Coolant Supply | Coolant Through |
| Finish | Heat Treated |
| Package Quantity | 1 |
