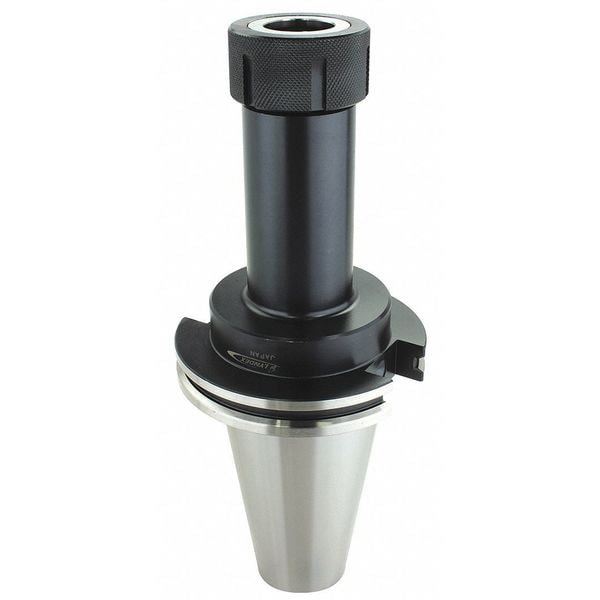

Collet Chuck, CAT50, ER16, Project 8in
| Item | Collet Chuck |
|---|---|
| Collet Series | ER16 |
| For Use With | ER Collets |
| Max. Collet Capacity | 1/2 in |
| Pre-Balanced | Yes |
| Coolant Through | Yes |
| Projection | 4 in |
| Balanceable | No |
| Taper Size | CAT50 |
| Nut Dia. | 1.26 in |
| Material | Molybdenum |
| Min. Collet Capacity | 1/8 in |
| Overall Length | 8 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 1.34 in |
| Features | Pre-Balanced |
| Speed - Maximum | 20,000 rpm |
| Coolant Supply | Coolant Through |
| Shank Type | Taper |
| Compatible Collet Size - Minimum | 1/8 in |
| T.I.R. Tolerance | 0 in |
| Finish | Nickel Chrome |
| Includes Coolant Screws | Coolant Screws Included |
| Compatible Collet Wrench | 50TG-SPAN |
| Includes Nut | Nut Included |
| Product Type | CAT Collet Chuck |
| Nut Diameter | 1.34 in |
| Compatible Collet Series | TG50 |
| Package Quantity | 1 |
