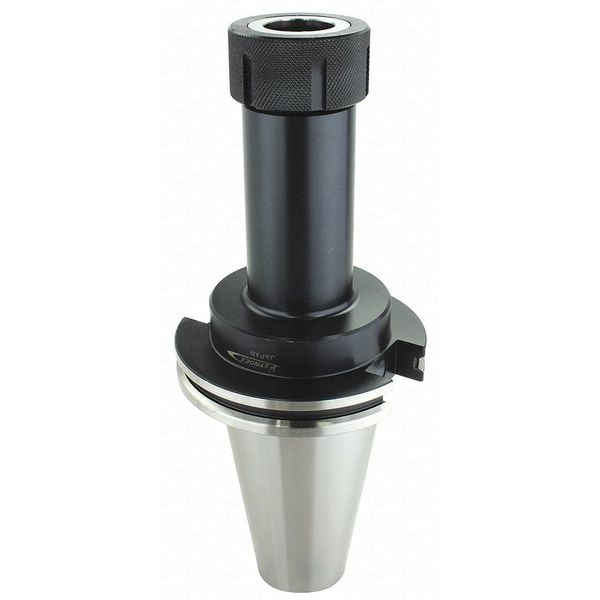

Collet Chuck, CAT50, ER32, Project 2in
| Item | Collet Chuck |
|---|---|
| Collet Series | ER32 |
| For Use With | ER Collets |
| Coolant Through | Yes |
| Projection | 7-1/2 in |
| Balanceable | No |
| Material | Molybdenum |
| Max. Collet Capacity | 1 in |
| Taper Size | CAT50 |
| Pre-Balanced | Yes |
| Nut Dia. | 1.97 in |
| Min. Collet Capacity | 0.047 in |
| Overall Length | 11-1/2 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 2-1/2 in |
| Features | Pre-Balanced |
| Compatible Collet Size - Minimum | 0.0469 in |
| Compatible Collet Series | TG100 |
| T.I.R. Tolerance | 0 in |
| Includes Coolant Screws | Coolant Screws Included |
| Includes Nut | Nut Included |
| Shank Type | Taper |
| Nut Diameter | 2-1/2 in |
| Compatible Collet Size - Maximum | 1 in |
| Compatible Collet Wrench | 100TG-SPAN |
| Coolant Supply | Coolant Through |
| Finish | Nickel Chrome |
| Product Type | CAT Collet Chuck |
| Speed - Maximum | 20,000 rpm |
| Package Quantity | 1 |
