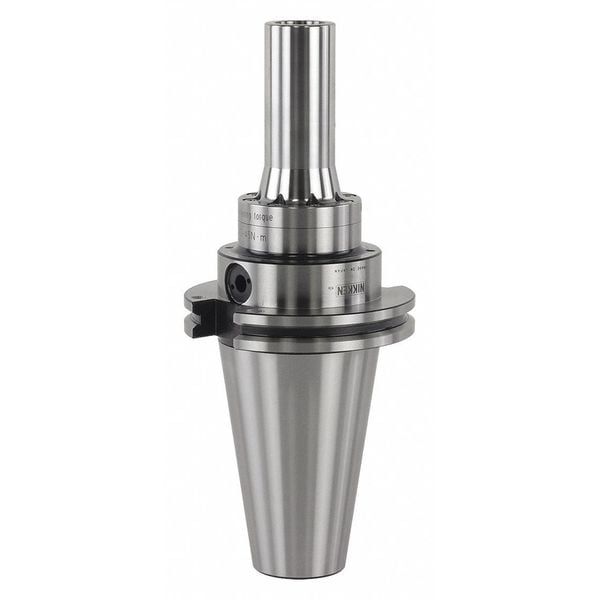

Collet Chuck, CAT50, SK10, Project 195mm
| Item | Collet Chuck |
|---|---|
| Collet Series | SK10 |
| For Use With | SK Collets |
| Max. Collet Capacity | 0.314 in |
| Projection | 4.134 in |
| Balanceable | No |
| Taper Size | CAT50 |
| Coolant Through | Yes |
| Pre-Balanced | Yes |
| Nut Dia. | 1.083 in |
| Material | High Speed Steel |
| Min. Collet Capacity | 0.079 in |
| Overall Length | 8-1/64 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 0.787 in |
| Features | Pre-Balanced |
| Coolant Supply | Coolant Through |
| Nose Diameter | 0.787 in |
| Compatible Collet Wrench | ALLEN6 |
| Speed - Maximum | 30,000 rpm |
| Shank Type | Taper |
| Nut Diameter | 1.083 in |
| Includes Nut | Nut Not Included |
| Balance Rating | G2.5 |
| T.I.R. Tolerance | 0 in |
| Product Type | CAT Collet Chuck |
| Compatible Collet Size - Minimum | 1/8 in |
| Compatible Collet Series | VMK8 |
| Package Quantity | 1 |
