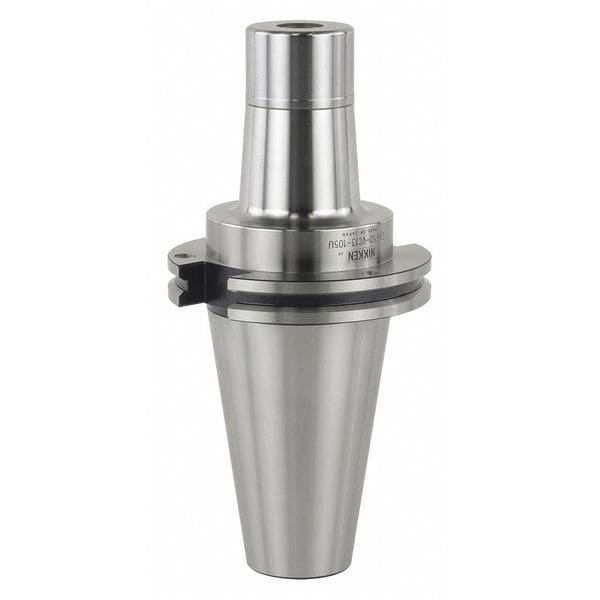

Collet Chuck, CAT50, VC6, Project 165mm
| Item | Collet Chuck |
|---|---|
| Collet Series | VC6 |
| For Use With | VC Collets |
| Coolant Through | Yes |
| Balanceable | No |
| Taper Size | CAT50 |
| Pre-Balanced | Yes |
| Material | High Speed Steel |
| Projection | 6.496 in |
| Nut Dia. | 1.083 in |
| Min. Collet Capacity | 0.118 in |
| Max. Collet Capacity | 0.511 in |
| Overall Length | 10-1/2 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 1.575 in |
| Features | Pre-Balanced |
| Coolant Supply | Coolant Through |
| Speed - Maximum | 40,000 rpm |
| Product Type | CAT Collet Chuck |
| Includes Coolant Screws | Coolant Screws Included |
| Compatible Collet Series | VCK13 |
| Compatible Collet Size - Maximum | 1/2 in |
| Includes Nut | Nut Included |
| Shank Type | Taper |
| Compatible Collet Wrench | GH16 |
| T.I.R. Tolerance | 0 in |
| Nut Diameter | 1.575 in |
| Compatible Collet Size - Minimum | 1/8 in |
| Package Quantity | 1 |
