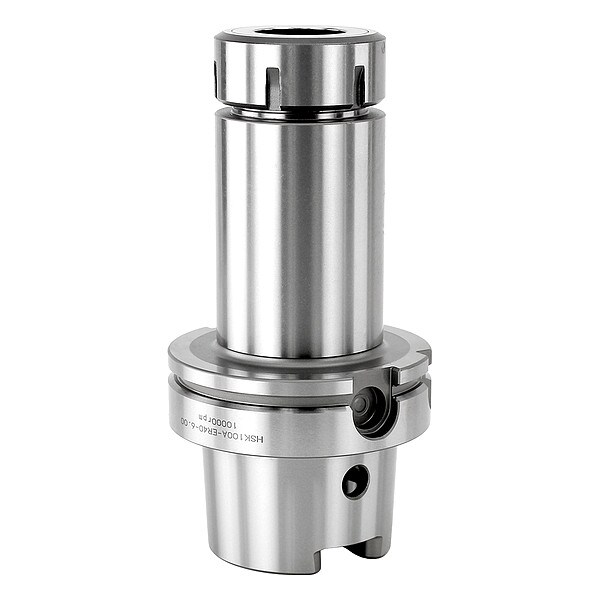

Collet Chuck, HSK100, SK10, Project 150mm
| Item | Collet Chuck |
|---|---|
| Collet Series | SK10 |
| For Use With | SK Collets |
| Taper Size | HSK100 |
| Min. Collet Capacity | 1/8 in |
| Material | Molybdenum |
| Nut Dia. | 1.083 in |
| Balanceable | No |
| Max. Collet Capacity | 1.023 in |
| Coolant Through | Yes |
| Pre-Balanced | Yes |
| Projection | 6 in |
| Overall Length | 7-31/32 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 2.48 in |
| Features | Pre-Balanced |
| Standards | DIN 6499 |
| Compatible Collet Size - Minimum | 0.118 in |
| Nut Diameter | 2.48 in |
| Speed - Maximum | 25,000 rpm |
| Finish | Nickel Chrome |
| Coolant Supply | Coolant Through |
| Includes Coolant Screws | Coolant Screws Included |
| Compatible Collet Size - Maximum | 1.024 in |
| Product Type | HSK Collet Chuck |
| Shank Thread Size | M50 |
| Outside Diameter - Maximum | 2.44 in |
| Includes Nut | Nut Included |
| Compatible Collet Wrench | 040-SPAN |
| Compatible Collet Series | ER40 |
| Shank Type | Taper |
| T.I.R. Tolerance | 0 in |
| Torque - Maximum | 125 ft-lb |
| Package Quantity | 1 |
