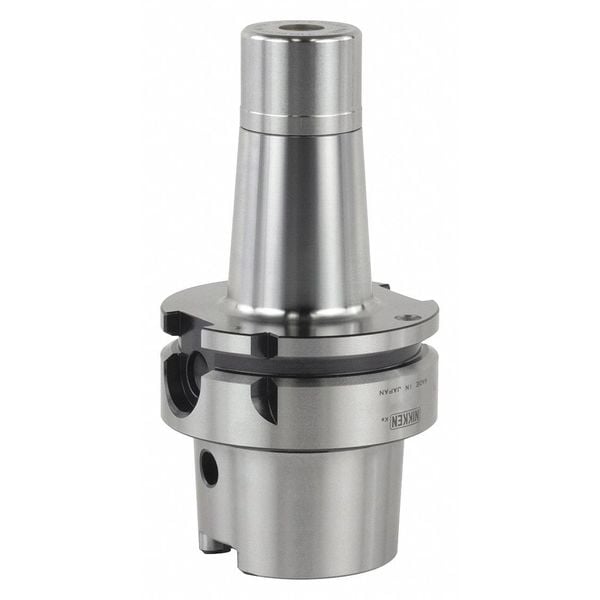

Collet Chuck, HSK63, VC13, Project 120mm
| Item | Collet Chuck |
|---|---|
| Collet Series | VC13 |
| For Use With | VC Collets |
| Material | High Speed Steel |
| Taper Size | HSK63 |
| Coolant Through | Yes |
| Balanceable | No |
| Pre-Balanced | Yes |
| Min. Collet Capacity | 0.118 in |
| Max. Collet Capacity | 0.511 in |
| Projection | 4.72 in |
| Nut Dia. | 1.575 in |
| Overall Length | 5-63/64 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 1.575 in |
| Features | Pre-Balanced |
| Torque - Maximum | 55 ft-lb |
| Nut Diameter | 1.575 in |
| Compatible Collet Series | VC13 |
| Includes Nut | Nut Included |
| T.I.R. Tolerance | 0 in |
| Coolant Supply | Coolant Through |
| Shank Type | Taper |
| Compatible Collet Wrench | GH16 |
| Product Type | HSK Collet Chuck |
| Includes Coolant Screws | Coolant Screws Included |
| Compatible Collet Size - Maximum | 0.512 in |
| Speed - Maximum | 30,000 rpm |
| Balance Rating | G2.5 |
| Compatible Collet Size - Minimum | 0.118 in |
| Outside Diameter - Maximum | 1.58 in |
| Package Quantity | 1 |
