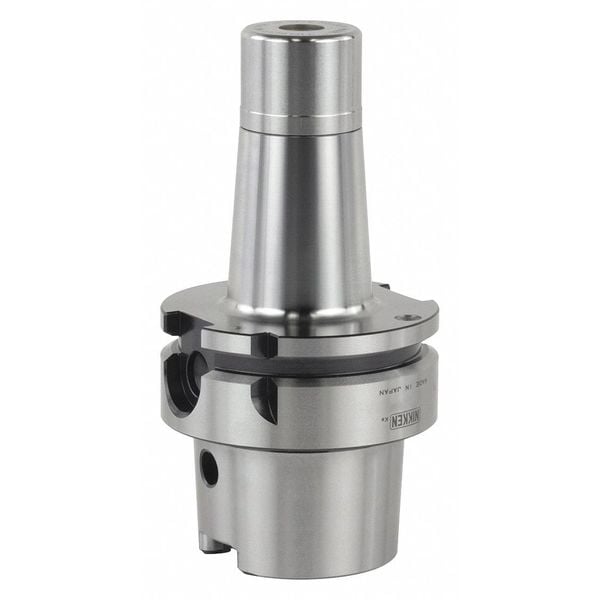

Collet Chuck, HSK63, VC6, Project 90mm
| Item | Collet Chuck |
|---|---|
| Collet Series | VC6 |
| For Use With | VC Collets |
| Min. Collet Capacity | 0.079 in |
| Nut Dia. | 1.083 in |
| Balanceable | No |
| Material | High Speed Steel |
| Taper Size | HSK63 |
| Max. Collet Capacity | 0.236 in |
| Projection | 3.54 in |
| Coolant Through | Yes |
| Pre-Balanced | Yes |
| Overall Length | 4-5/64 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 1.083 in |
| Features | Pre-Balanced |
| Torque - Maximum | 37 ft-lb |
| Includes Nut | Nut Included |
| Shank Type | Taper |
| Compatible Collet Size - Maximum | 1/4 in |
| T.I.R. Tolerance | 0 in |
| Compatible Collet Size - Minimum | 0.079 in |
| Compatible Collet Wrench | GH10 |
| Speed - Maximum | 30,000 rpm |
| Includes Coolant Screws | Coolant Screws Included |
| Compatible Collet Series | VC6 |
| Outside Diameter - Maximum | 1.08 in |
| Product Type | HSK Collet Chuck |
| Coolant Supply | Coolant Through |
| Nut Diameter | 1.083 in |
| Balance Rating | G2.5 |
| Package Quantity | 1 |
