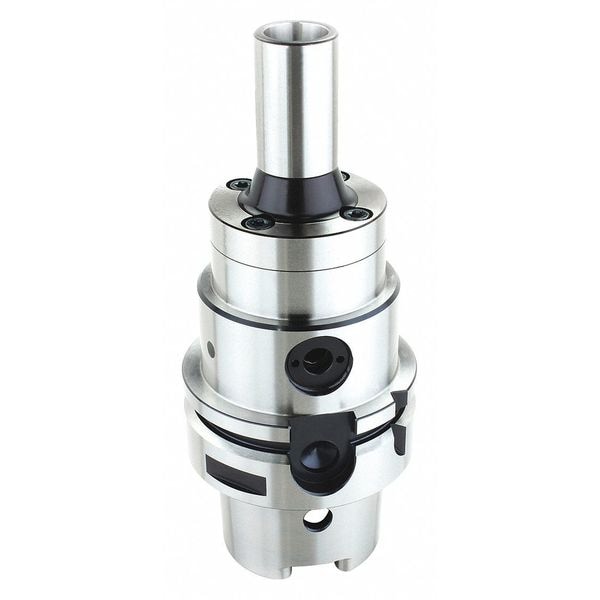

Collet Chuck, HSK63, VMK12, Project 117mm
| Item | Collet Chuck |
|---|---|
| Collet Series | VMK12 |
| For Use With | MPK/VMK Collets |
| Coolant Through | Yes |
| Max. Collet Capacity | 1/2 in |
| Projection | 4.33 in |
| Balanceable | No |
| Pre-Balanced | Yes |
| Material | High Speed Steel |
| Min. Collet Capacity | 0.158 in |
| Taper Size | HSK63 |
| Overall Length | 5-35/64 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 1.181 in |
| Features | Pre-Balanced |
| Shank Type | Taper |
| Balance Rating | G2.5 |
| Compatible Collet Series | MMC12 |
| Nose Diameter | 1.181 in |
| T.I.R. Tolerance | 0 in |
| Coolant Supply | Coolant Through |
| Compatible Collet Wrench | ALLEN6 |
| Product Type | HSK Collet Chuck |
| Outside Diameter - Maximum | 1.18 in |
| Compatible Collet Size - Maximum | 1/2 in |
| Speed - Maximum | 30,000 rpm |
| Compatible Collet Size - Minimum | 0.157 in |
| Includes Nut | Nut Not Included |
| Torque - Maximum | 30 ft-lb |
| Package Quantity | 1 |
