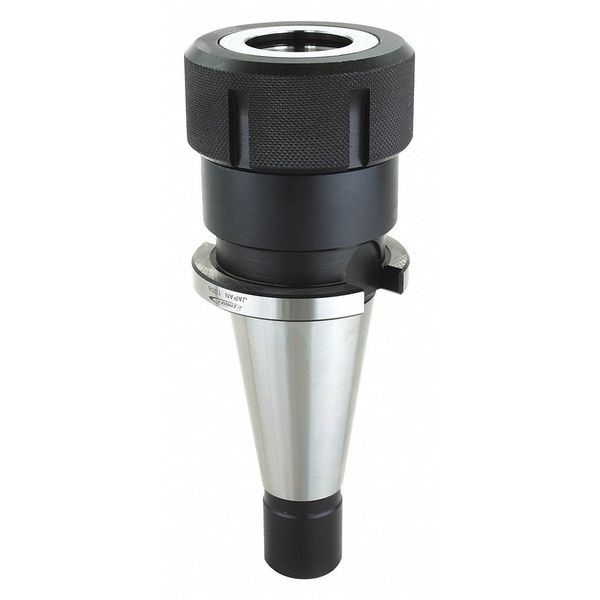

Collet Chuck, NMTB30, 75TG, Project 2.500in
| Item | Collet Chuck |
|---|---|
| Collet Series | TG75 |
| For Use With | TG Collets |
| Material | Molybdenum |
| Pre-Balanced | Yes |
| Taper Size | NMTB30 |
| Nut Dia. | 1.89 in |
| Projection | 2-1/2 in |
| Balanceable | No |
| Max. Collet Capacity | 3/4 in |
| Coolant Through | Yes |
| Min. Collet Capacity | 0.047 in |
| Overall Length | 5-3/16 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 1.89 in |
| Features | Pre-Balanced |
| Outside Diameter - Maximum | 1.89 in |
| Product Type | NMTB Collet Chuck |
| Compatible Collet Size - Maximum | 3/4 in |
| Compatible Nut Model Number | 75TG-NUT |
| Speed - Maximum | 30,000 rpm |
| Includes Coolant Screws | Coolant Screws Included |
| Shank Type | Taper |
| Compatible Collet Series | TG75 |
| Coolant Supply | Coolant Through |
| Compatible Collet Size - Minimum | 0.047 in |
| Nut Diameter | 1.89 in |
| Compatible Collet Wrench | 75TG-SPAN |
| T.I.R. Tolerance | 0 in |
| Finish | Nickel Chrome |
| Includes Nut | Nut Included |
| Package Quantity | 1 |
