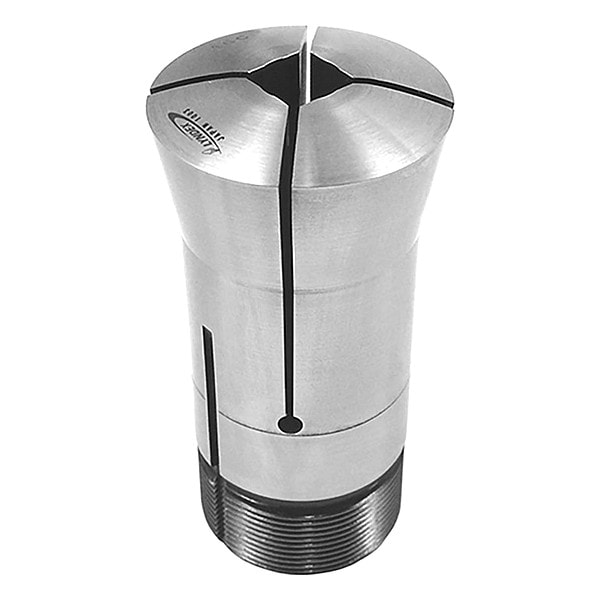

Collet Square, 16C, 3/4in
| Item | Collet |
|---|---|
| Collet Series | 16C |
| Range | Exact Size |
| Size | 3/4" |
| Coolant Through | No |
| For Use With | Collet System |
| Coolant Fed | Non-Coolant Through |
| Taper Angle | 20 deg |
| Overall Length | 4-5/16 in |
| TIR Max. | 0.0031 in |
| Max. Body Dia. | 3/4 in |
| Head Dia. | 2.26 in |
| Measurement System | Inch |
| Number of Slots | 4 |
| Internal Thread Size | 1 11/16"-20 |
| Face Shape | Square |
| Collet Type | Standard |
| Internal Thread Direction | Right Hand |
| Max. Bore Dia. | 1.89 in |
| External Thread Direction | Right Hand |
| For Shank Type | Straight |
| Min. Size | 3/4 in |
| T.I.R. Tolerance | 0.0031 in |
| External Thread Size | M47.5 x 1.75 |
| Bore Shape | Square |
| Collapse Range - Maximum | 3/4 in |
| Clamping Hole Length | 1-25/32 in |
| Outside Diameter - Maximum | 2.26 in |
| Package Quantity | 1 |
