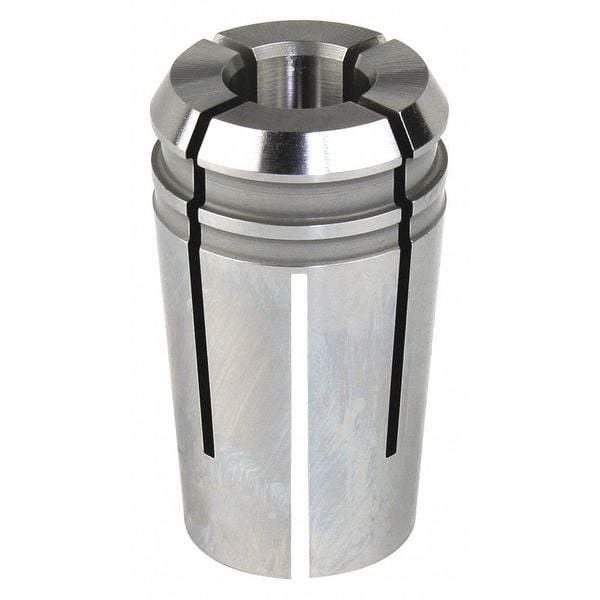

Coolant Collet, 75TG, 13/32
| Item | Collet |
|---|---|
| Collet Series | TG75 |
| Range | 0 to 1/64 in |
| Size | 13/32 |
| For Use With | Collet Chucks |
| Coolant Through | Yes |
| Coolant Fed | Coolant Through |
| Measurement System | Inch |
| Taper Angle | 8 deg |
| Compatible with Product Type | TG Collet Chucks |
| Max. Bore Dia. | 1-1/16 in |
| Max. Body Dia. | 13/32 in |
| Face Shape | Round |
| Head Dia. | 0.871 in |
| Number of Slots | 4 |
| Overall Length | 1-27/32 in |
| Collet Type | Sealed |
| Material | Low-Carbon Steel |
| Standards | AT3 |
| Torque - Maximum | 55 ft-lb |
| External Thread Size | Not Applicable |
| T.I.R. Tolerance | 0 in |
| Outside Diameter - Maximum | 1.06 in |
| Collapse Range - Maximum | 0.406 in |
| Compatible Collet Chuck | TG Collet Chucks |
| Collapse Range - Minimum | 0.3904 in |
| Bore Shape | Round |
| Internal Thread Size | Not Applicable |
| Finish | Chrome-Plated |
| Package Quantity | 1 |
