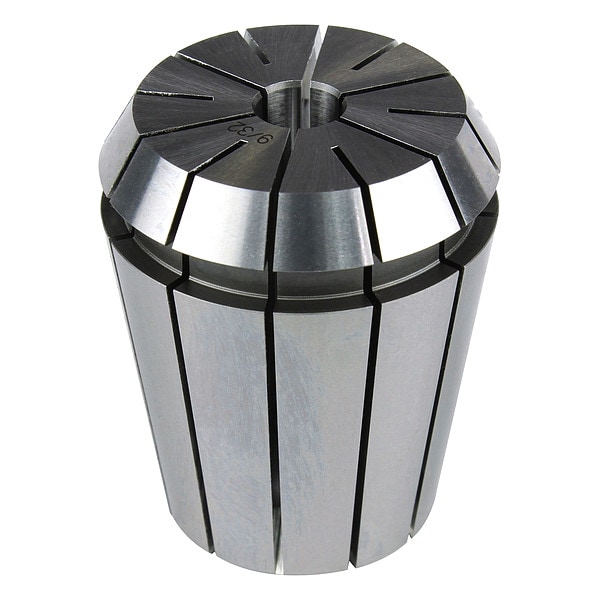

Coolant Collet, ER32, 23/64in
| Item | Collet |
|---|---|
| Collet Series | ER32 |
| Range | 0.359 to 0.344 in |
| Size | 23/64" |
| Coolant Through | Yes |
| For Use With | Collet Chucks |
| Coolant Fed | Coolant Through |
| Face Shape | Round |
| Number of Slots | 6 |
| Collet Type | Sealed |
| Measurement System | Inch |
| Max. Body Dia. | 23/64 in |
| Overall Length | 1-9/16 in |
| Compatible with Product Type | ER Collet Chucks |
| Head Dia. | 33.2 mm |
| Min. Size | 0.344 in |
| Max. Bore Dia. | 24.4 mm |
| Taper Angle | 16 deg |
| Material | Chromium-Molybdenum |
| Standards | DIN 6499 |
| Internal Thread Size | Not Applicable |
| Bore Shape | Round |
| Collapse Range - Maximum | 0.359 in |
| Compatible Collet Chuck | ER Collet Chucks |
| Outside Diameter - Maximum | 1.3 in |
| Clamping Hole Length | 1-3/32 in |
| Collapse Range - Minimum | 0.344 in |
| External Thread Size | Not Applicable |
| Package Quantity | 1 |
