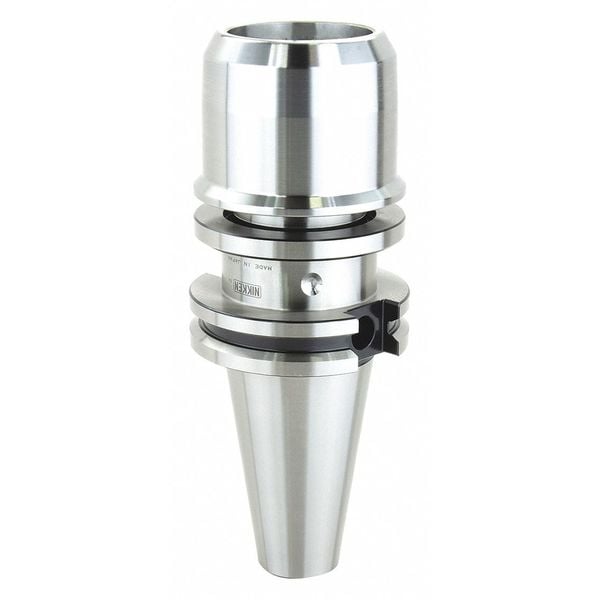

HS Mllng Chuck Holder, CAT40, 4.13in Proj
| Projection | 3.15 in |
|---|---|
| Coolant Through | Yes |
| Item | Milling Chuck |
| Bore Depth | 2.3200 in to 3.1500 in |
| Nose Dia. | 2.16 in |
| Taper Size | CAT40 |
| Collet Series | KM1 |
| Hole Dia. | 1 in |
| Coolant Fed | Coolant Through |
| Features | 140% More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity |
| Clamping Range | 1/8 to 1 in |
| TIR Max. | Less Than 0.0002 in |
| Nose Diameter | 1.89 in |
| Coolant Supply | Coolant Through |
| Finish | Nickel Chromium |
| Material | Molybdenum 4340 |
| Speed - Maximum | 20,000 rpm |
| Measurement System | Inch |
| Compatible Spanner Wrench Manufacturer Model Number | GH20 |
| T.I.R. Tolerance | 0 in |
| Product Type | Milling Chuck |
| Compatible Reducing Sleeve | KM3/4 |
| Contact Type | Dual Contact |
| Package Quantity | 1 |
