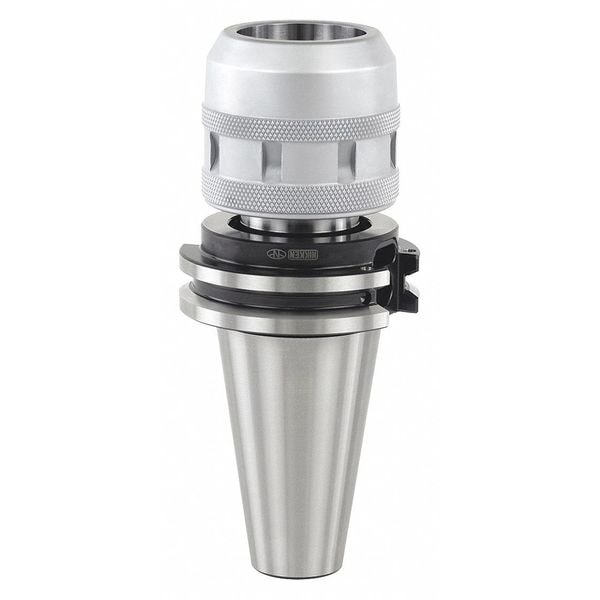

Milling Chuck Holder, 2.530 to 3.031in.
| Hole Dia. | 1-1/4 in |
|---|---|
| Nose Dia. | 2.71 in |
| Item | Milling Chuck |
| Coolant Through | Yes |
| Taper Size | CAT40 |
| Bore Depth | 2.5300 in to 3.0300 in |
| Collet Series | KM1.1/4 |
| Projection | 3.15 in |
| Coolant Fed | Coolant Through |
| Nose Diameter | 1.89 in |
| Speed - Maximum | 20,000 rpm |
| T.I.R. Tolerance | 0 in |
| Coolant Supply | Coolant Through |
| Contact Type | Dual Contact |
| Measurement System | Inch |
| Compatible Spanner Wrench Manufacturer Model Number | GH20 |
| Product Type | Milling Chuck |
| Compatible Reducing Sleeve | KM3/4 |
| Finish | Nickel Chromium |
| Material | Molybdenum 4340 |
| Package Quantity | 1 |
