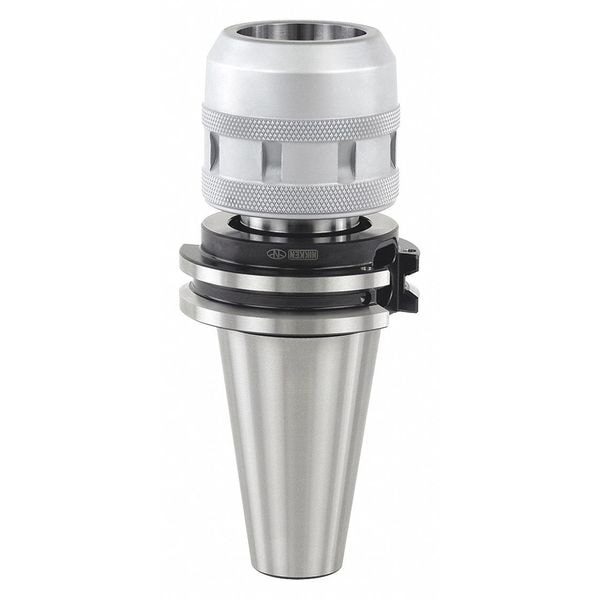

Milling Chuck Holder, 5.31in Project
| Nose Dia. | 2.04 in |
|---|---|
| Taper Size | H100 |
| Projection | 3.267 in |
| Item | Milling Chuck |
| Collet Series | KM3/4 |
| Hole Dia. | 3/4 in |
| Bore Depth | 2.0800 in to 3.1500 in |
| Coolant Through | Yes |
| Coolant Fed | Coolant Through |
| Clamping Range | 1/8 to 3/4 in |
| Features | 140% More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity |
| TIR Max. | Less Than 0.0002 in |
| Nose Diameter | 2.72 in |
| T.I.R. Tolerance | 0 in |
| Coolant Supply | Coolant Through |
| Product Type | Milling Chuck |
| Material | Molybdenum 4340 |
| Measurement System | Inch |
| Speed - Maximum | 12,000 rpm |
| Includes Spanner Wrench | Spanner Wrench Not Included |
| Compatible Spanner Wrench Manufacturer Model Number | 9CKR, CCKL32, GH32 |
| Compatible Reducing Sleeve | CCK1-1/4, CCNK1-1/4, KM1-1/4 |
| Package Quantity | 1 |
