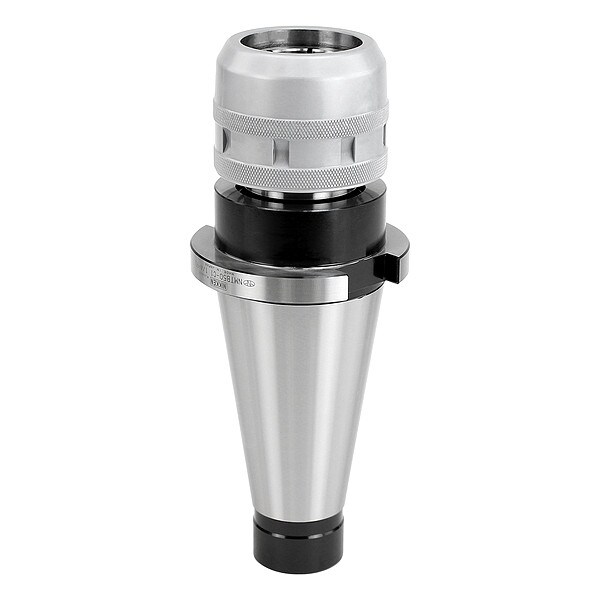

Milling Chuck Holder, NMTB50, Nose 2.717in
| Collet Series | KM1.1/4 |
|---|---|
| Hole Dia. | 1-1/4 in |
| Item | Milling Chuck |
| Bore Depth | 2.07 in |
| Nose Dia. | 2.71 in |
| Taper Size | BT40 |
| Coolant Through | Yes |
| Projection | 3.15 in |
| Coolant Fed | Coolant Through |
| Clamping Range | 3/16 to 1-1/4 in |
| Features | 140% More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity |
| TIR Max. | Less Than 0.0002 in |
| Measurement System | Inch |
| Coolant Supply | Coolant Through |
| Product Type | Milling Chuck |
| Bore Diameter | 1 in |
| Compatible Reducing Sleeve | KM1.1/4 |
| Nose Diameter | 2.36 in |
| Package Quantity | 1 |
