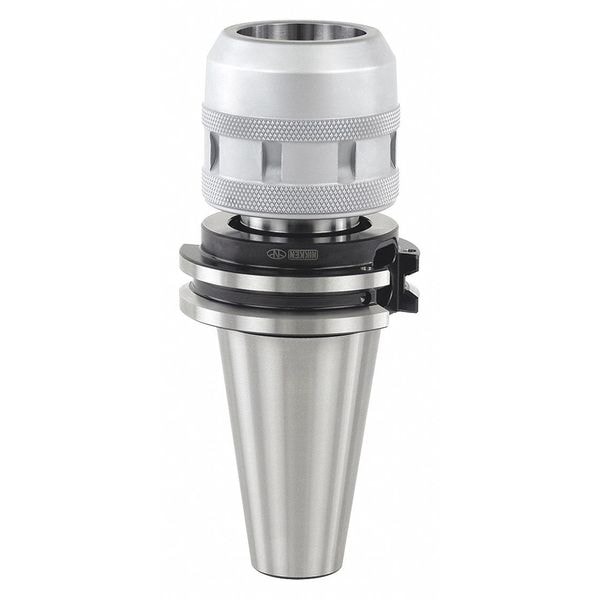

Milling Chuck Holder, Nose 2.717in
| Nose Dia. | 2.71 in |
|---|---|
| Hole Dia. | 1-1/4 in |
| Collet Series | KM1.1/4 |
| Item | Milling Chuck |
| Coolant Through | Yes |
| Projection | 4.134 in |
| Bore Depth | 2.5300 in to 3.5400 in |
| Taper Size | CAT40 |
| Coolant Fed | Coolant Through |
| T.I.R. Tolerance | 0 in |
| Finish | Nickel Chromium |
| Compatible Reducing Sleeve | KM1.1/4 |
| Measurement System | Inch |
| Coolant Supply | Coolant Through |
| Nose Diameter | 2.717 in |
| Material | Molybdenum 4340 |
| Speed - Maximum | 20,000 rpm |
| Product Type | Milling Chuck |
| Compatible Spanner Wrench Manufacturer Model Number | 9HC32 |
| Package Quantity | 1 |
