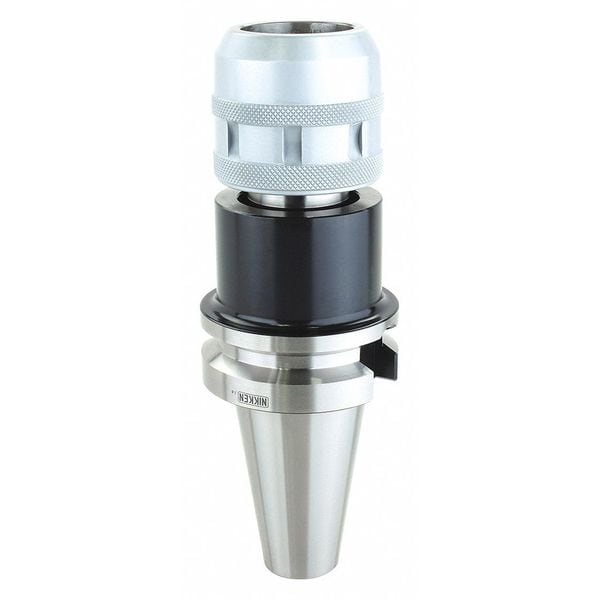

Mll Chuck Holder, Nose2.362in, Proj 4.13in
| Coolant Through | Yes |
|---|---|
| Hole Dia. | 1 in |
| Bore Depth | 2.3200 in to 3.1500 in |
| Collet Series | KM1 |
| Projection | 3.149 in |
| Item | Milling Chuck |
| Taper Size | BT40 |
| Nose Dia. | 2.36 in |
| Coolant Fed | Coolant Through |
| Includes Spanner Wrench | Spanner Wrench Not Included |
| Speed - Maximum | 25,000 rpm |
| Product Type | Milling Chuck |
| Coolant Supply | Coolant Through |
| Material | Molybdenum 4340 |
| Nose Diameter | 2.05 in |
| Contact Type | Dual Contact |
| Compatible Spanner Wrench Manufacturer Model Number | 9CKR, CCKL20, GH20 |
| Measurement System | Inch |
| T.I.R. Tolerance | 0 in |
| Compatible Reducing Sleeve | KM3/4, CCK3/4, CCNK3/4 |
| Package Quantity | 1 |
