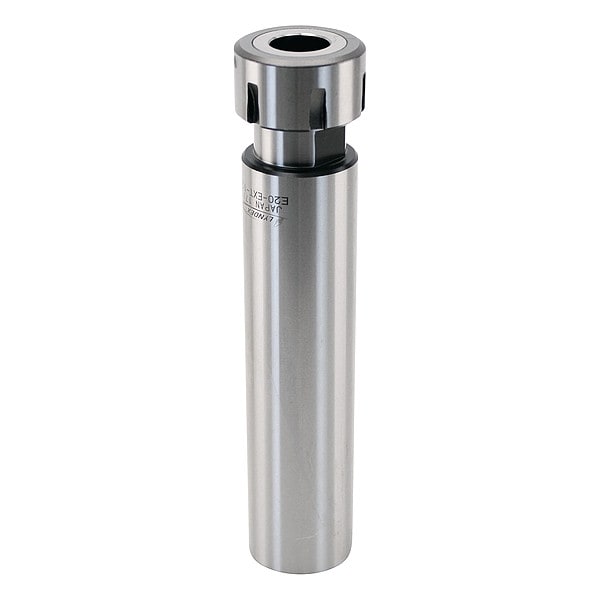

Shank Collet Holder, ER20, 1.25 in. dia.
| Item | Collet Chuck Extension |
|---|---|
| Shank Type | Straight |
| Overall Length | 6.4 in |
| Shank Shape | Cylindrical |
| Shank Dia. | 1-1/4 in |
| Collet Series | ER20 |
| Min. Collet Capacity | 0.039 in |
| Nose Dia. | 1.38 in |
| Features | No Disc, Special Nut or Wrench Required |
| Head Length | 1.48 in |
| Compatible Collet Wrench | 020-SPAN |
| Backup Screw Thread Size | M25 x 1.5 |
| Compatible Collet Series | ER20 |
| Head Diameter | 1.38 in |
| Speed - Maximum | 23,000 rpm |
| T.I.R. Tolerance | 0 in |
| Compatible Nut Model Number | E20-NUT |
| Shank Diameter | 1-1/4 in |
| Coolant Supply | Coolant Through |
| Compatible Product Type | ER Collet Chucks |
| Shank Length | 5 in |
| Package Quantity | 1 |
